Tektronix 80C01-cr 20 ghz module CSA8000 CSA8000B

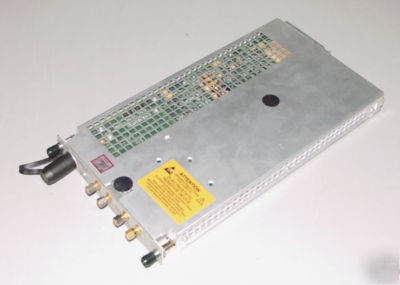

Tektronix 80C01-CR 20 GHz Optical Sampling Module
The 80C01 module supports waveform compliance testing of long wavelength (1100-1650 nm) signals at 622, 2488, and 9953 Mb/s as well as general purpose testing w/up to 20 GHz optical bandwidth.
With its clock recovery option (Opt. CR), the 80C01 provides complete testing solu-tions for 622 and 2488 Mb/s telecom applications.
* High-Speed Optical Communications Testing
* Extinction Ratio and Q-Factor Measurements
* Eye-Pattern and Pulse Shape Analysis
* Relaxation Oscillation Testing
* Effective wavelength range: 1100 nm to 1650 nm
* Calibrated wavelengths: 1310 nm and 1550 nm
* Clock recovery (Optional): 622.08 Mb/s, 2.48832 Gb/s
* Number of input channels: 1
* Absolute maximum non-destructive optical input: 5 mW average power; 10 mW peak power at wavelength with highest relative responsivity
* Internal fiber diameter: 9 m/125 m single mode
* Optical return loss: > 30 dB
* Minimum optical bandwidth: > 20 GHz
This unit has been tested by an on-staff engineer and it is in excellent condition and fully functional. It comes with a 14 Day Guarantee against DOA from receipt.
