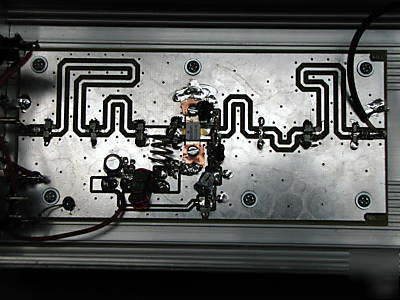

30-40 watt fm broadcast band (88-108MHZ) amplifier kit
30-40 Watt FM Broadcast (88-108 MHz) Amplifier Kit
This 30-40 watt FM broadcast amplifier operate at 12-14 volts DC with a current requirement of 5 amps at 13.8 volts. Requires 1 watt of drive power. Output power is adjustable with a variable bias voltage control. Easy assembly with mostly surface mount components. An adequately sized heatsink must be used to dissipate heat from the transistor.
