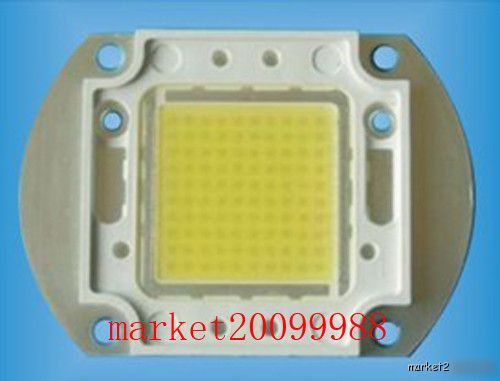

1 pcs high-power 100W warm white led brightness 6500LM
1 pcs high-power 100w warm white led brightness 6500LM
Long service life(Intensity remain above 70% after work 100000H)
Each color for your selection (red , yellow , green , blue , white , warmed white)
High efficient (better than incandescent lamp and halogen lamp)
Adjust its light at your option
Many appearances for your selectionMany appearances for your selection
DC Forward Voltage (VF): 33.0 ~ 36.0 V
Intensity Luminous (Iv): 3500LM
Color Temperature: 6000K-6500K
* Lambertian Package Outlines:
1 All dimensions are in millimeters (inches).
2 Tolerance is 0.25mm(.010") unless otherwise noted.
3 Specifications are subject to change without notice.
* Absolute Maximum Ratings at Ta=25deg:
Peak pulse current(1/10 duty pulse width 1msec)
Manual Soldering Tine at 260deg(Max.)
Electrical/Optical Characteristics at Ta=25deg :
* Electrical & Optical Curves at Ta=25deg:
1 Heat generation must be taken into design consideration , LED heat sink and others remain good contact , enlarge heat loss condition which can be ensured LED long service life and luminous efficient.
2 Use IPA as a solvent for cleaning LED products, the other solvent may dissolve the LED package and the epoxy, Ultrasonic cleaning should not be done.
3 Damaged LED will show unusual characteristics:
n Leak current remarkably increase
n Turn on voltage becomes lower
n LED get unlight at low current
4 if you do not feel LED heat when you use them, it may have the following conditions:
n LED unwork or thermal conductivity reduce
n Open circuit , short circuit , leak current overpass , turn on voltage becomes lower , Inadequate intensity supplied.
n Enough large heat sink can give out a lot of heat .
Our 20w leds need cooling board to avoid the extra heat. Pls use the 20w led as the product specifications . If improper operation caused led burning out , we won't be responsible for it .
