Precision tone generator greenlee #177
Precision Tone Generator Greenlee #177
Power Requirements: One 6V lantern battery Battery Life: 40 hours nominal Transmitter Frequency: 577.5Hz pulsed at 1Hz, crystal controlled Output Voltage: 0.1 to 80Vp-p Output Signal Level: 0 to +30dBm Construction: High impact ABS plastic in woven polyester case Dimensions: 7.25" x 5.5" x 4.5" in case Weight: 3 lbs. with battery
Used in the telecommunications industry for pair identification and fault locating.
* Supplies a precise 577.5Hz crystal controlled signal frequency.
* Variable output allows technicians to adjust signal strength to suit field conditions and improve accuracy.
* Designed to work with any common amplifier and exploring coil for aerial fault locating.
* For communications over inactive pairs, the unit supplies talk battery to power two telephone test sets (buttsets).
* Each of the three test leads is equipped with traditional bent nose piercing clips with "bed of nails" insulation piercing pins.

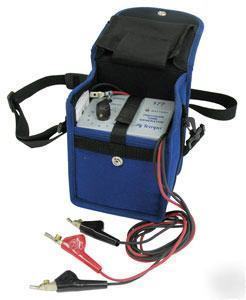

* The tone generator and test leads fit neatly in a durable, protective woven polyester carrying case with shoulder strap.
* Battery-operated (1-6V lantern included).
