Miller big blue air pak deluxe model 907062071
MILLER BIG BLUE AIR PAK DELUXE MODEL 907062071
BRAND NEW MILLER BIG BLUE AIR PAK, DELUXE MODEL 907062071 CAPABLE OF ARC, MIG, STICK, CARBON ARC, TIG WITH AVAILABLE ACCESSORIES.
Engine = Turbocharged 64 hp Deutz 4-cylinder diesel
Cold Weather Pkg = Includes weld ammeter & voltmeter, battery lock-out / tag-out disconnect, intake manifold heater & oil pan heater for cold weather starting.
Deluxe Pkg = Includes Cold Weather Pkg PLUS, vandalism lock-out with locking front panel & locking engine compartment door, 20 kW 3ph/12kW 1-ph Generator, AC TIG, Battery Jump-Start and Charger 12/24 Volt. ( * HF251 required for AC TIG)
YOU MAY CALL US 7 DAYS A WEEK FROM 5:00AM-7:00PM PACIFIC TIME WITH QUESTIONS.
Complete package - a multiprocess welder/generator/air compressor/optional battery charger.
* Air Carbon Arc (CAC-A) thru 1/2" carbons
* Battery Charging/Jump-Starting*
* Maintenance and Repair Rigs
* Stick: 600 A, 44 V (26.4 kW), 40% duty cycle
* MIG/FCAW: 500 A, 40 V (20 kW), 100 % duty cycle
* Battery Charger 12/24 V, 50-750 A*
* Air Compressor: 100 PSI, 60 CFM, 100 % duty cycle
* 5,500 watts Peak - 4,000 watts Continuous
* 20,000 watts 3-phase / 12,000 1-phase Continuous*
* Base & Cold Weather Models: 1931 lbs (876 kg)
* Deluxe Model: 1956 lb (887 kg)
* Turbocharged 64 hp Deutz Diesel
* Engine Gauges and Auto Idle

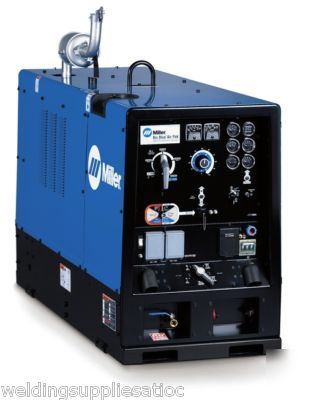

Big Blue Air Pak Multiprocess welder, generator, air compressor and optional battery charger
Deluxe model shown without the Vandalism Lockout Kit.
Every component in a Miller industrial engine drive is engineered and built to assure ultimate reliability in the most punishing conditions. What makes Miller Industrial Engine Drives so Tough?
Hours left before an oil change is due
Fuel gauge & low fuel shutdown indicator
High coolant temperature and low oil pressure shutdown indicators
Deutz turbocharged four-cylinder diesel engine provides ample power at high altitudes.
Ingersoll-Rand ultra-reliable industrial rotary screw air compressor. Belt-driven with automatic belt tensioner with a life expectancy of 30,000 hours.
industrial rotary screw air compressor cross-section
The VaultThe Vault-ultimate control board reliability. Hardened solid-state control technology, housed in a sealed vault. The vault's sealed connections are made through watertight plugs that make these components impenetrable to dust and moisture.
Independent compressor controls include an on/off switch for applications not requiring compressed air. At idle speed, the Air Pak will produce 100 PSI at 60 CFM.
Quiet - at only 70 db (95 Lwa) when idle, 79 db (104 Lwa) at maximum output. Improves work site communications.
Hot Start provides positive stick electrode starts to make it easy to start all types of electrodes.
Arc-Drive makes welding easy. Automatically enhances Stick welding, especially on pipe, by focusing the arc and preventing the electrode from going out.
Optional AC/DC/battery charge/jump-start for AC TIG welding and 12 or 24 volt batteries. Simply select the battery voltage and connect cables to the separate battery output studs. Note: High-frequency control required for AC TIG welding.
Meets NEMA and IEC output ratings.
