Lenel 1100 lnl-1100 lenel input control module (icm)

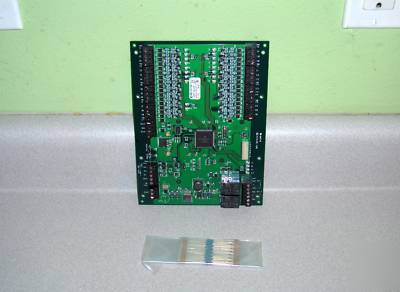

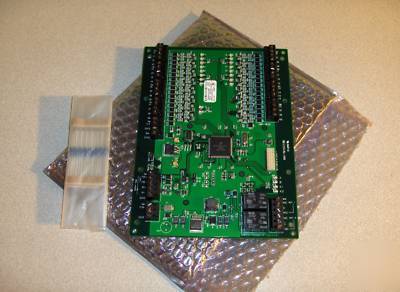

HERE WE HAVE UP FOR SALE A NEW IN THE PACKAGE LENEL LNL-1100
The Lenel Input Control Module (ICM) provides the access control system with high-speed acknowledgement
of critical alarm points in monitored areas. The ICM communicates directly with the Intelligent System
Controller (ISC) either by 2-wire or 4-wire RS-485 communication. The ICM has 16 configurable input control
points and 2 output control relays. It supports normally open, normally closed, supervised and non-supervised
The input circuits are scanned using an analog to digital converter. The digitized input status signal is software
monitored and controlled, so that each input point can be programmed as a supervised or non-supervised
The output relays can also be configured for fail-safe or fail-secure operation. Each relay supports "On," "Off,"
and "Pulse" Lenel OnGuard software commands.
Grade B, A, and AA Line Supervision
16 programmable supervised or non-supervised
Two Form-C 5 A, 30 VDC contacts for load switching
Two dedicated inputs for tamper and power failure
DIP switch selectable addressing
Elevator control, support for 64 floors
Status LED for host communication and heartbeat
Variable Resistor Values for Line Supervision
