3M-matic 800R3 random case sealer

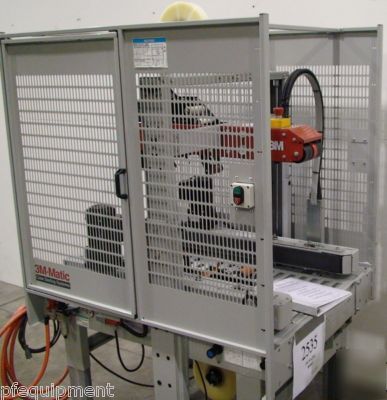

1999 3M-Matic 800r3 Random Case Sealer
3M-Matic 800r3 Random Case Sealer

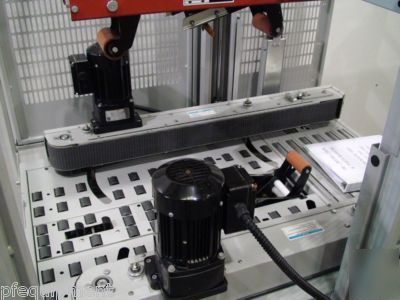

This 3M-Matic 800r3 Random Case Sealer features side belt drives that easily handle assorted-size cases, even cases as narrow as 4.25" [11Omm]. It seals up to 15 cases per minute, automatically adjusting to each case, so you can seal multiple sizes with one machine - without sealing by hand or stopping for adjustments. Other features include AccuGlide II taping heads for precise tape application; repositionable masts for different case height ranges; gearmotor drives; frame-mounted upper tape drum; dual crossbar mounting; roller top deck; electrically interlocked punched steel sideguards; instructional and safety labeling; electrical on/off switch and centrally located stop switch.

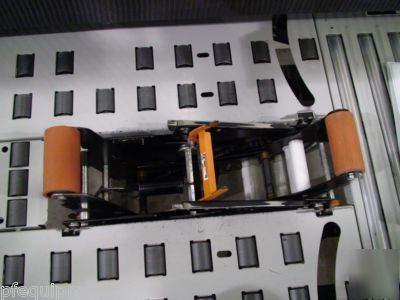

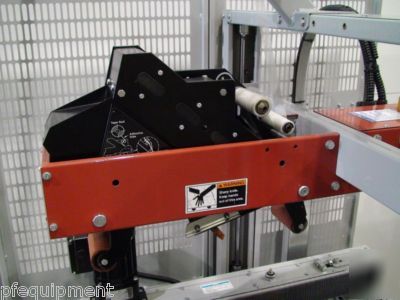

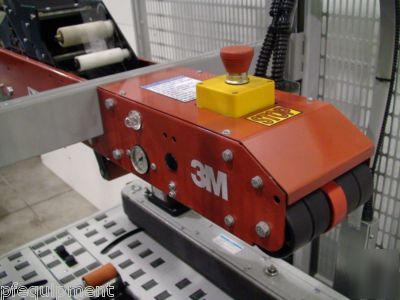

This 3M-Matic 800r3 random case sealer automatically adjusts for case size. Self-centering side belt drive for consistent flow of narrow width cases at up to 15 per min. Includes 3M AccuGlide II Taping Heads for low-impact application of tapes up to 72 mm wide.

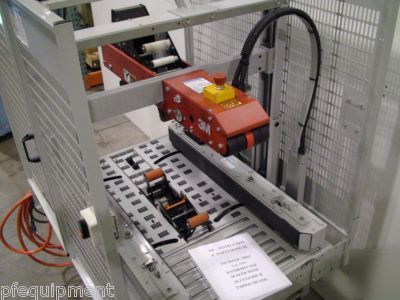

Automatically adjusts for case height and width without sealing by hand or stopping for adjustments. Box length 8 inches and up; width 5.25 inch - 20 inch. Repositionable dual masts handles two different case height ranges: 5 inch - 21 inch (standard) and 9 inch - 23.75 inch. Dual-crossbar mounting helps assure upper assembly stability for precise sealing. Friction brake drums prevent tape overrun and provide more consistent tape application.
* Minimum Box Length: 8"[205mm]
* Maximum Box Length: Unlimited
* Minimum Box Width: 4.25" [I10mm]
* Maximum Box Width: 20"(510mm]
* Minimum Box Height: 4.75"[120mm]
* Maximum Box Height: 21"[535mm]
* Weight (filled): up to 85 lbs. [38.6kg].
* Roll Diameter: up to 16" [405mm] maximum on a 3" [76.2mm] diameter core.
* Tape Width: 2.0"[48mm] minimum to 3"[72mm] maximum
* 8ft neoprene covered power cord with grounded plug.

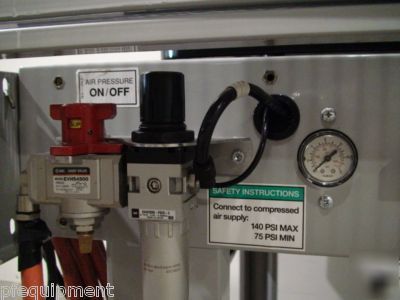

* Machine Pneumatic: 70 PSIG[4.8 bar gauge pressure], 3.75 SCFM [.14 I/min @ 21 degrees C, 1.01 bar] at 15 boxes per minute. A pressure regulator is included.
* Machine Operating rate: Up to 15 boxes per minute depending on box length.
* Machine Box drive belt speed: 78 fpm [0.4 m/s].
