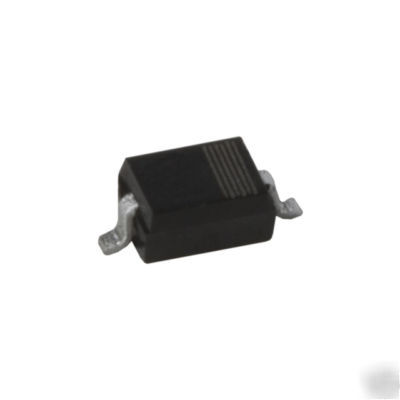

Infineon rf silicon pin diode SOD323, BAR64-03W, 50PCS
* Max forward Current: 100mA
* Low Series Resistance: 2.1 Ohm at 100MHz, at 10mA
* Low Capacitance: 0.23pF typ at 1MHz, Vr=20V
* Insertion Loss: 0.23dB at f=1.8GHz, If=5mA
* Isolation: 17dB at f=1.8GHz, Vr=0V
* Charge Carrier Life Time: 1550ns
* Operating temp: -55C to +125C
http://pdf1.alldatasheet.com/datasheet-pdf/view/78979/INFINEON/BAR64-03W.html
