> Harig model 612, 6" x 12" hand operated surface grinder

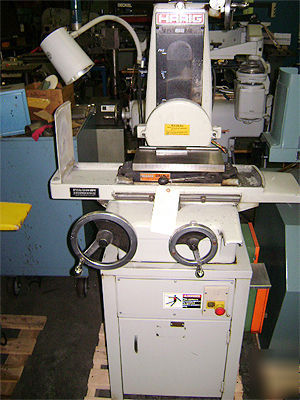

Harig model 612, 6" x 12" hand operated surface grinder
Harig Model 612, 6" x 12" Hand Operated Surface Grinder
referencing Harig Model 612, 6" x 12" Hand Operated Surface Grinder
Harig Model 612, 6" x 12" Hand Operated Surface Grinder
Technical Specifications: * Item # 6917-420
* Operating voltage: 230, 3 phase, 60 cycle
* Width & length ground: 6" x 12"
* Longitudinal travel: 12-3/4"
* Cross feed travel: 6-3/4"
* Vertical working height under 7" wheel: 12"
* Maximum grinding wheel diameter: 8"
* Elevating handwheel graduation: 0.00005"
* Cross feed handwheel graduation: 0.001"
* Fine feed handwheel for cross, graduation: 0.0001"
* Floor area cabinet: 21" x 25"
* Floor area operating space: 48" x 45"
* Estimated machine weight: 900 lbs.
EQUIPPED WITH: * walker 6" x12" permanent magnetic chuck
Contact Cliff Davis at 401.724.3200 during normal business hours (EST) or email ****@goldmachinery.com referencing 6917-420.
We will partially crate this item for $275.00 or we will skid and cover when possible for $145.00. As always we will load your truck from our dock at no extra charge. This item may also be transported via flat bed truck. We will assist in rates if requested.
