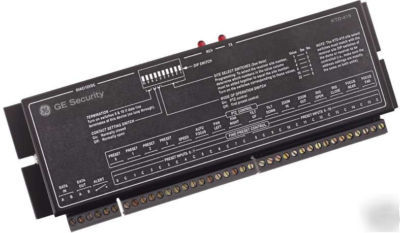

New ge ktd-415 16 input alarm ptz preset controller
KTD-415 GE Interlogix / Kalatel Preset alarm interface module
The KTD-415 initiates local call-up of up to 16 preset positions on a CyberDome or other compatible PTZ (pan/tilt/zoom) receiver with preset positioning capability (1)
Each of the KTD-415 s 16 dry contact connections corresponds to preset positions 0 through 15 on a PTZ receiver. Each preset consists of a pan, tilt, zoom, and focus position. The KTD-415 can operate with receivers addressed 0 through 63. The receiver s address is set on the unit s programmable DIP switch.
The KTD-415 also features a dry-contact output relay that activates when one or more preset alarm contacts is closed. This dry contact output can be fed to a KTD-463 alarm system or a KTD-348 alarm interface, providing video call-up and site annunciation to the keypad operator.
For custom applications, the KTD-415 can be configured to provide PTZ control of a Kalatel PTZ receiver through dry contacts.
(1) PTZ receivers must have preset positioning capability.
* 16 dry contact connections
* Automatic call-up of presets 0 to 15
* Output relay for alarm interface
* Compact: 9 x 3.15 x 1.11 inches
* 100-240V AC power supply included.
Warranty: New. We do not provide warranty.
