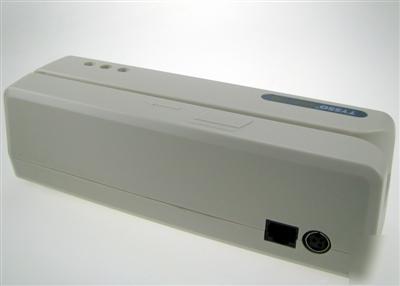

Magnetic credit card hi-co 3TRACK reader writer encoder
3 Tracks 1/2/3 Hi-co Lo-co Magnetic Card Reader/Writer Encoder MSE 750
Fully Compatible with MSR206 and MSE-630A (300Oe - 4000Oe)
This device can be connected with any computer or terminal with the RS-232 serial interface or USB interface,and it can be used to read/write information on the magnetic stripe of the card with following features:
* Easy programming, read/write can be happened simultaneously
* Hi-co Lo-co card reader/writer (300Oe - 4000Oe)
* Connect through RS-232 port or USB port.
* MSR206/MSE-630A dual platform compatibility
* Support software of MSR206 and MSE-630A (e.g. Exeba)
* ISO 7811-1/2/3/4/5 & ANSI 4.16 1983 compliant
* Support 5/6/7BPC 210/75BPI format
* Double indication of read/write, LED and beep
* A Read/Write Software will be included
* Power supply (100-240VAC input / 24V DC 2.5A output)
* Temperature : 0 C - 40 C
* Humidity : 20% - 90% RH, non-condensing
* Temperature : -20 C - 70 C
* Power Supply : 100-240VAC/24VDC 2.5A
* Operating Voltage : +24V DC ( 5%)
* Current Consumption: 350 mA (read) and 600 mA (write)
* Read/Write Standard : ISO 7811-1/2/3/4/5 & ANSI 4.16 1983 compliant, 5/6/7BPC 210/75BPI on any track
* Record density : 210 BPI or 75 BPI on any track
* Media Life : 1,000,000 passes for both read and write
* Media Thickness : 0.25mm - 2.03mm
* Dimensions : 212mm x 63mm x 63mm
US$ 35 internationally by Hong Kong Post Speed Post (EMS)
US(3-5 business days). UK, Canada & Other European countries(5-7 business days).
