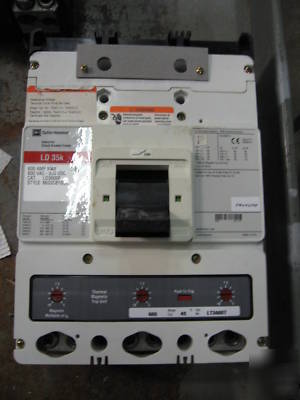

Cutler hammer circuit breaker 3P 600 amp 600V LD3600
CUTLER HAMMER/WESTINGHOUSE LD3600 LD3600F CIRCUIT BREAKER. USED BUT IN REAL CLEAN LIKE NEW CONDITION. TESTED WITH A 1 YEAR REPLACEMENT WARRANTY CATALOG SPECS:
MOLDED CASE, THERMAL MAGNETIC; L FRAME; 600 VAC AT 50/60 HZ, 250 VDC (UL); 690 VAC AT 50/60 HZ, 250 VDC (IEC); 600 AMPERE AT 40 DEG C; 3 POLE; INTERRUPTING RATING 65 KILOAMPERE AT 240 VAC, 35 KILOAMPERE AT 480 VAC, 25 KILOAMPERE AT 600 VAC, 22 KILOAMPERE AT 250 VDC (UL); 85 KILOAMPERE AT 240 VAC, 45 KILOAMPERE AT 415 VAC, 20 KILOAMPERE AT 690 VAC/250 VDC (IEC); TERMINAL ALUMINUM/COPPER STANDARD PRESSURE LINE TERMINAL, STANDARD PRESSURE LOAD TERMINAL; SIZE 8-1/4 INCH W X 4-1/16 INCH D X 10-3/4 INCH H; LD MODEL; APPLICABLE STANDARD NEMA AB1, AS 2184, BS 4752 PART 1, IEC 157-1, SABS 156, SEV 157-1, VDE 0660
