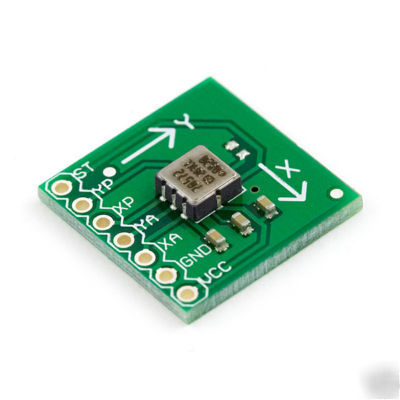

Sparkfun - dual axis accelerometer board sen-00844
Breakout board for the Analog Devices accelerometers in the E8 package. The ADXL203 is a solid state MEMS accelerometer with Analog output. The ADXL203 can measure both static and dynamic acceleration. This means the ADXL is suited well for sensing tilt (used in many Glove / Air Mouse applications) and for sensing brute acceleration (rocketry and general motion sensing applications).
Please refer to the datasheet for more information. Analog output sensors require a microcontroller that has an analog to digital converter (ADC).
Board comes fully assembled and tested with ADXL203 sensor, 0.1uF filtering capacitors.
Dimensions: 0.70x0.70" (18x18mm)
* ADXL E8 Breakout Schematic
* Analog Devices website (current datasheets and other info)
