Used incremental shaft encoder made by accu-coder

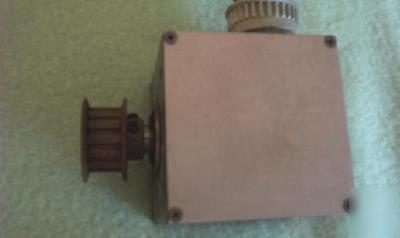

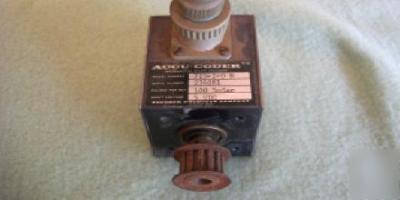

USED Incremental Shaft Encoder made by ACCU-CODER
* Standard Cube configuration
* 3/8" Diameter Shaft, 3/4" in length
* Bi-directional Encoder - two output channels, one channel has a constant pulse width output regardless of shaft rotation. The other channel has an up/down direction line with logic level 1 for clockwise shaft rotation, and level 0 for counterclockwise shaft rotation.
* 100 pulses per revolution, 5mSec. width
This encoder also comes with a 1 1/8" diameter pulley and the required mating connector. I have downloaded a product brochure from the internet that can be found here: http:// /literature/datasheet-715.pdf
