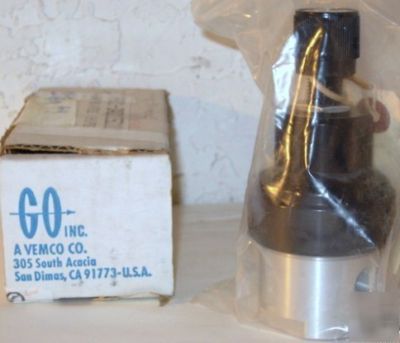

Go PR11-3A01I5C111 0-10 psig precise pressure regulator
This listing is for a pressure regulator.
* Model / Part # 1: PR11-3AO1I5C111
* Description: Ultra Sensitive Pressure Control Regulator
This precision pressure regulator has been designed to allow the user complete fl exibility in application. The instrument design engineer can now choose the optimum operating parameters he needs for a particular fl ow system. Flow and pressure regulation can now be easily and economically accomplished in laboratory and process chromatographs, air pollution analyzers and other general process and laboratory instruments. The low internal volume and no trapped areas mean effi cient operation and cleanliness in instrumentation with high sensitivity detectors. The standard stainless diaphragm prevents permeability of undesired contaminants into the flow stream.
This regulator off ers greater pressure and fl ow stability for critical applications such as chemiluminescent type analyzers and is considered the ultimate in maximum stability with ambient temperature change. The PR-11 Series has truly been designed by experienced instrumentation engineers for use in that industry.
* Single stage precision regulation in a compact design package
* Pressure gauge and relief valve ports optional
* Tefl on lined stainless steel or Viton diaphragm standard
* Outlet pressure ranges 0 10, 0 25, 0 50, 0 100, 0 250 and 0 500 psig
* Suitable for gas or liquid service
* Panel mounting diameter, standard
* Inlet pressures to 3600 psig
* Cv fl ow coeffi cient of 0.025, 0.06, and 0.20
* Materials in contact with operating media are aluminum, 300 series stainless steel, Viton , Tefl on and Inconel
* Port Configuration: Standard
* Process Port Types: 1/8" FNPT (1/8" FNPT guage ports)
* Surface Finish of Diaphragm Cavity: < 25 Ra
* Seat Material: High Density Teflon
* Flow Coefficient (Cv): 0.2
* Diaphragm Type: Standard
* Diaphragm Facing/Backing Material: Teflon / Stainless Steel
* Cap Assembly: Standard Stainless Steel (SS
