> Everfocus paragon EPARA16D3-3TB dvr digital video rec

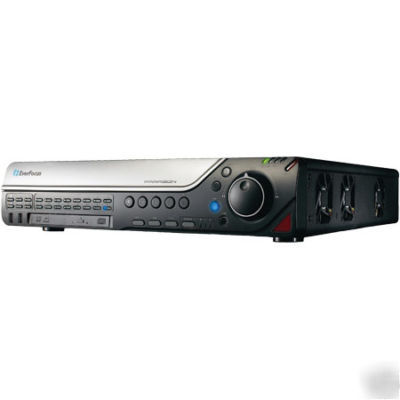

Everfocus paragon EPARA16D3-3TB dvr digital video rec
Model/Part Number: EPARA16D3-3TB (3TB = 3000GB)
* Display - Full, 4, 7, 9, 10, 13, 16, PIP and 2x2 zoom
* Pentaplex Operation - Simultaneous live, recording, playback, archive and remote viewing
* Monitor Output - BNC Main, BNC Call, VGA Main, S-Video Main
* Recording Resolution - 352x240 (CIF), 704x240 (Half D1), 704x480 (D1)
* Recording Speed - CIF 480/400 (NTSC/PAL), Half D1: 24O/200 (NTSC/PAL), D1: 120/100 (NTSC/PAL).
* Playback Speed - CIF 480/400 (NTSC/PAL), Half D1: 24O/200 (NTSC/PAL), D1: 120/100 (NTSC/PAL).
* Playback Rate - CIF 480/400 (NTSC/PAL), Half D1: 24O/200 (NTSC/PAL), D1: 120/100 (NTSC/PAL).
* Compression - MPEG4 CompressiOn
* Recording Mode - Manual, Schedule and Event
* Playback Search - By Date, Time and Event
* Internal HDD - 4 Internal or 2 Hot-Swappable
* Built-In DVD Burner - Optional
* User Interface - Graphical User Interface (GUI) menu setting
* Network COnnection - RJ45 Gigabit Ethernet
* Network Protocol - TCP/IP, DHCP or PPPoE
* PTZ Control - On Screen Display and NetworK Viewer
* PTZ Protocol - EverFocus, Pelco-D, Pelco-P, Samsung, Transparent.
* USB - 2 USB 2.0 port on front panel
* User Access - 3 levelS of user access support
* RS-232 - 9-pin D-sub socket (male)
* Power Source - 100VAC - 240VAC
* Power Consumption - 150W max.
* Dimension (L x W x H) - 410 x 430 x 88 mm / 16.2" x 16.9" x 3.5"
* Temperature - 0C - 40C / 32F - 104F (20-80% humidity)
* Pentaplex operation (simultaneous live, recording, playback, archive and remote viewing)
* User friendly Graphical User Interface (GUI) with graphical icons and visual indicators
* Multiple control units: mouse, front panel and remote control
* Built-in recorder calculator for quick estimation of storage time
* Express Setup: allows for quick & easy recording and network configuration
* Express Archive: copy video files while playing back
* Express Playback: simply point, click and drag the playback bar to view previous recordings
* Express Search: use intuitive playback bar with a simple drag & drop operation
* Free EverFocus DDNS service
* Remote configuration support from built-in web interface
* Gigabit ethernet interface for remote nework viewing and controlling
* Real-time live display for all cameras
* On-screen PTZ control via mouse or front panel
* eSATA port for additional external storage
* 2 USB 2.0 ports (located on front panel) for video archive and mouse usage
* Audio recording capabilities
* Simultaneous VGA, composite and S-Video monitor outputs
* Watermark capabilities to identify intentional modification of recorded data
* Support EKB500 keyboard control
* EPARA16D3-500: 16 Channel., Full Size DVR with 480 FPS, GUI, Built-in DVD Burner, 500GB
* EPARA16D3-1TB: 16 Channel., Full Size DVR with 480 FPS, GUI, Built-in DVD Burner, 1TB
* EPARA16D3-2TB: 16 Channel., Full Size DVR with 480 FPS, GUI, Built-in DVD Burner, 2TB
* EPARA16D3-3TB: 16 Channel., Full Size DVR with 480 FPS, GUI, Built-in DVD Burner, 3TB
* EPARA16D3-4TB: 16 Channel., Full Size DVR with 480 FPS, GUI, Built-in DVD Burner, 4TB
