3250 gal pfaudler reactor, 75/150#
3250_GAL_PFAUDLER_REACTOR,_75~150-num- 3250_GAL_PFAUDLER_REACTOR,_75~150-num-3250_GAL_PFAUDLER_REACTOR,_75~150-num-3250_GAL_PFAUDLER_REACTOR,_75~150-num-
3250_GAL_PFAUDLER_REACTOR,_75~150-num-
3250 GAL PFAUDLER REACTOR, 75/150#

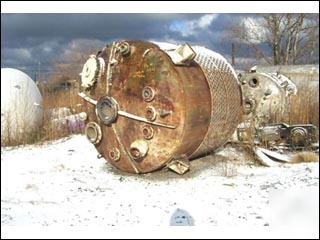

ONE (1) Used 3000 Gallon Pfaudler Reactor, 316 stainless steel construction, 75 PSI and full vacuum internal at 365 degrees F, 150 PSI at 365 degrees F dimple jacket, approx.
8' diameter x 7'6" straight side, dished top and bottom, top manway and misc. top nozzles, bottom outlet, 20 HP Lightnin Agitator Drive, 100 RPM agitator speed, mechanical seal, turbine blades, Serial No. R365-1588, National Board No. 23523.
