245X185 high quality infrared bga large rework station

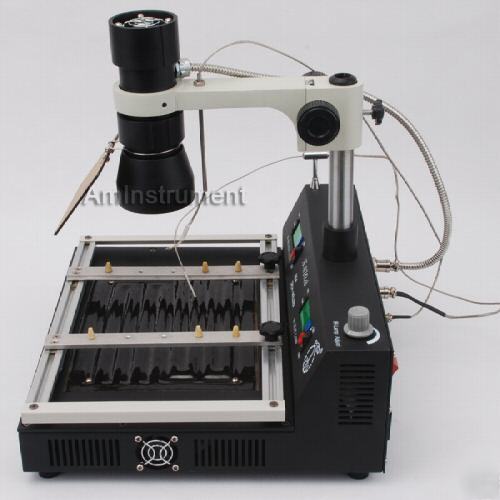

High Quality Infrared BGA Large Rework Station
* State-of-the-Art Infrared welding technology
* Infrared heating has good penetration power. When compared with traditional soldering/desoldering station using hot air (sirocco), this infrared desoldering machine greatly reduces demage caused by heat stress.
* Easy operation. Can operate this machine in one day.
* Don't need desoldering tools. This machine can desolder components of 1.4"x1.4"-2"x2" (35x35mm - 50x50mm)
* This machine has 800W pre-heating system. Pre-heating area is 10"x7.5" (245x185mm)
* Precise infrared targeting reduces damages to other parts or components of the circuit. Especially suitable for desoldering / reworking on BGA components
* Suitable for use in repairing desktop computers, notebook computers, etc. Especially suitable for desoldering the north bridges and south bridges of computer boards
* Infrared Heating Area: 2"x2" (50x50mm)
* Pre-heating Area: 10"x7.5" (245x185 mm)
* Working Area: 14.4"x9.6" (360x240 mm)
* Infrared heating lamp power: 150W
* Temperature: 200 C-350 C
* Pre-heating temperature: 60 ~ 200?
* Packing Size: 17"x10"x17" (430mm x 260mm x 420mm)
* 1 temperature sensor for infrared lamp
* 1 temperature sensor for chips
* 1 filter to protect eyes
* 110V 60Hz or 220-240V 50Hz
