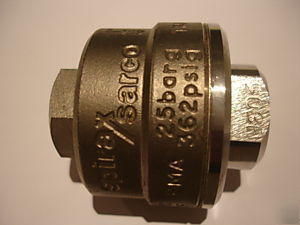

Spirax sarco MST21 1/4" stainless steam trap
MST21 Stainless Steel Balanced Pressure Thermostatic steam Trap
The MST21 is a maintainable balanced pressure thermostatic
steam trap designed for relatively small condensate loads usually associated with instrument tracing applications. It is manufactured
in stainless steel and is corrosion resistant and easily maintainable.
The tight shut-off prevents valuable steam from being wasted
Cost effective, compact design makes them ideal for drainage of steam mains, steam tracing lines, and small process equipment where size and efficient operation are important.
Discharge from Thermo-Dynamic (TD) traps is close to steam temperature steam space is kept free from condensate.
Constructed of stainless steel, TD traps withstand superheat, waterhammer, freezing, corrosive condensate, and vibration.
Note: Minimum pressure for satisfactory operation is 3.5 psig. Maximum back pressure should not exceed 80% of the inlet pressure under any conditions of operation, otherwise the trap may not shut.
* Steam main drain and tracer lines
* Laundry and kitchen equipment
* Superheated steam applications
* Outdoor installations subject to freezing
