Thermal dynamics cutmaster true 82 plasma cutter

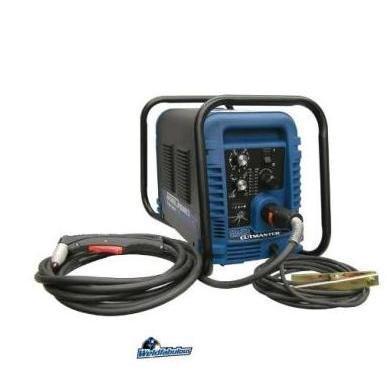

Thermal Dynamics Cutmaster True 82 Plasma Cutter
Thermal Dynamics Cutmaster True 82
The CUTMASTER 82 weighs in at a mere 43 lbs. (19.5kg) almost 50% less than its leading competitor, while still offering superior cutting power.
Don't let the size of this unit fool you, it's more than capable of cutting 3/4" (20mm) with a maximum cut of 1 1/2" (40mm). This unit, like all other TRUE CUTMASTERS is equipped with the 1 Torch.
208/230 - 460V 1/3 Phase 50/60 Hz
3/4 in. (20mm) Recommended Cut
40% @ 80A, 60% @ 65A, 100% @ 55A
SL60 with ATC (hand), SL100 (mechanized)
Hand Torch Switch or Hand Pendant Control
***NO INPUT POWER PLUG INCLUDED WITH PLASMA*** FEATURES:
* Front Panel LED's indicate status conditions for maximum efficiency.
* Storage compartment for convenient access to spare parts and consumables.
* Versatile 1Torch with ATC disconnect makes it easy to add lead extensions or convert to a machine torch.
* Multi-voltage allows operation from 208 to 480 Volts in a single power supply.
* Lighter weight design for maximum portability.
* 10 ft. (3.0m) Input Power Cable, Work Cable without 20 Amp Plug (460V) and Clamp
* 2 Spare 80 Amp Tips (9-8211)
* 2 Spare Electrodes (9-8215)
