Samsung 200W servo pack,driver motor 3AXES cnc,router

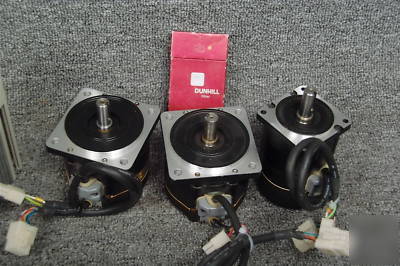

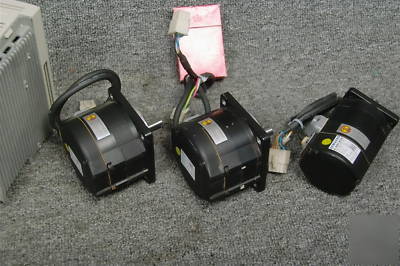

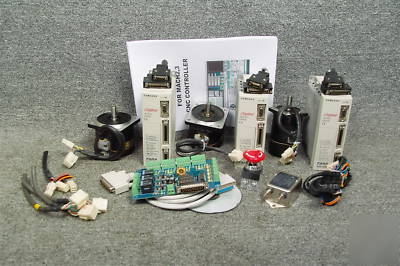

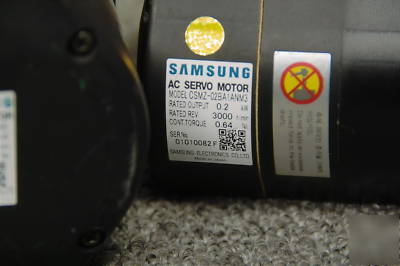

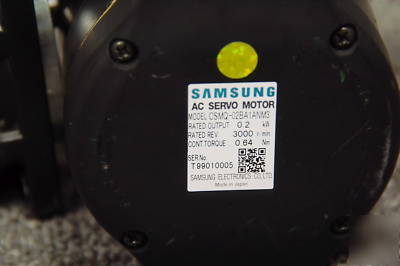

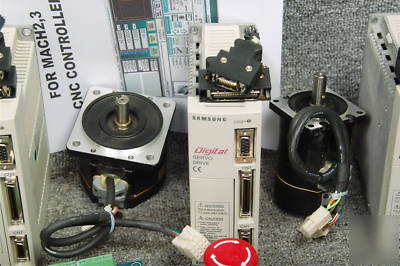

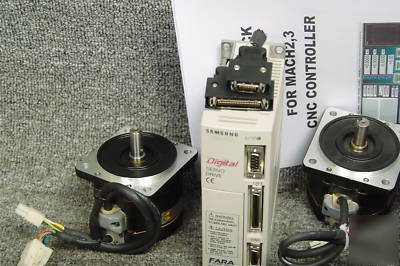

USED ROCKWELL SAMSUNG 200W SERVO DRIVERS AND MOTORS FOR 3 AXES

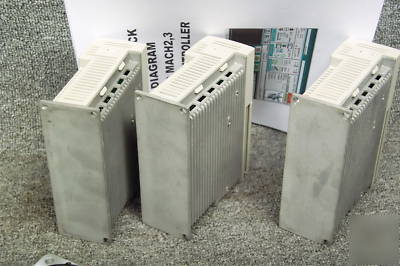

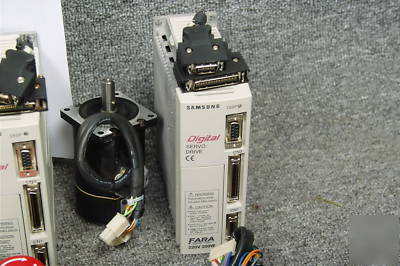

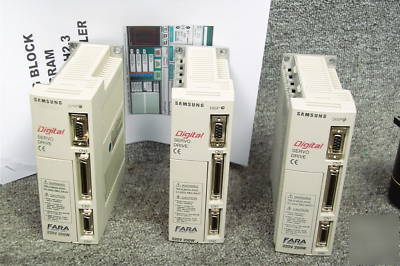

THREE SAMSUNG CSDJ-02BX1 DRIVER-200W
INPUT VOLT. : 220-230 Vac 1PHASE 50/60Hz
OUTPUT POWER : 0-230Vac 3PH 200W
CONTROL : POSITION, TORQUE, SPEED ETC...
SUPPORT CW/CCW, PULSE(CLK)/DIRE INPUTS
(WE PROVOIDE YOU SIMPLE AND EAYS WIRING DIAGRAM FOR MACH2.3.)
MADE IN KOREA, ROCKWELL SAMSUNG AUTOMATION.
*THREE 3M-10350 CONNECTOS FOR WIRING SIGNALS (WITH CABLE)
*THREE 3M-10320 ENCODER CONNECTORS NEED TO COMPLET THE CABLE BY YOURSELF-WIRING INSTRUCTION ON THE SERVO MANUAL
*SIX PHOTO LIMIT SWITHCHES
*ONE PC - BREAKOUT INTERFACE CABLE
*SERVO SETTING SOFTWARE AND ENGLISH PDF MANUALS ON CD-ROM
*PRINTED SIMPLE AND EASY WIRING DIAGRAM FOR MACH2,3

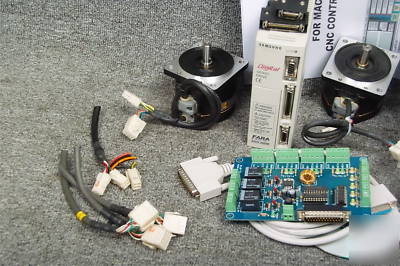

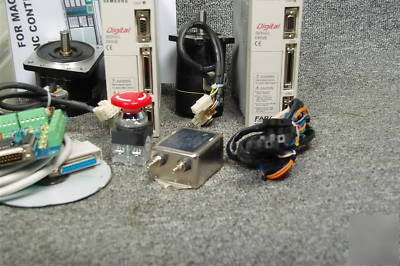

FREE BREAKOUT BOARD(=INTERFACE, BUFFER BOARD)
-SUPPORTS X,Y,Z,A AXIS SIGNAL INTERFACES.
-THREE RELAY AUXILIARY OUT PUT.
-FIVE INPUTS FOR X,Y,Z,A LIMIT SWITCHS
-INCLUDED 2M PRINTER EXTENSION CABLE
**ATTENTION: ITEM(S) MAY HAVE SOME SCRATCHES FROM NORMAL USE.
WE FOUND MORE THAN 30% OF USED SERVO MOTORS AND 20% OF USED SERVO DRIVES ARE DEAD
RUNNING 5-10 MINUTES IN VARIOUS SPEEDS
UING SETTING SOFTWARE JOG MODE.
* WE ARE USING A STETHOSCOPE TO LISTEN SOUND OF THE SERVO BEARINGS WHEN IT IS RUNNIGN IN MAXIMUM SPEED.
