Notifier model fsp-751 photoelectric smoke detector
NOTIFIER FSP-751 SMOKE DETECTOR

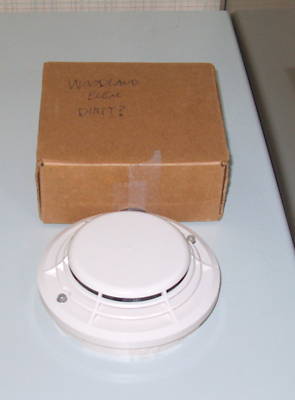

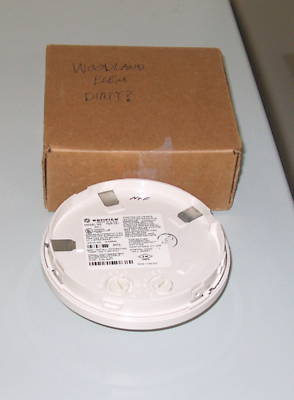

This is a used Notifier FSP-751 smoke detector. The technician that removed it noted on the box that it is in that it is "dirty?".
Model FSP-751 are intelligent sensors that combine a state-of-the-art photoelectronic sensing chamber with communications. These sensors are designed to provide open area protection and are intended for use with compatible control panels only. Please refer to the operation manual for the UL listed control unit for specific operation of the FSP-751.
Operating Voltage Range: 15 to 32 VDC
Standby Current: 300mA @ 24 VDC (one communication every 5
seconds with LED blink enabled)
Max. Alarm Current (LED on): 6.5 mA @ 24 VDC
Operating Humidity Range: 10% to 93% Relative Humidity, noncondensing
Operating Temperature Range: 0 to 49 C (32 to 120 F)
Height: 1.7 inches (43 mm) installed in B710LP Base
Diameter: 6.2 inches (155 mm) installed in B710LP Base
4.1 inches (104 mm) installed in B501 Base
