New digital vibration meter for v,a,d,f&rpm w/RS232C
New Digital Vibration Meter for V,A,D,F&RPM w/RS232C
For Velocity, Acceleration, Displacement and RPM

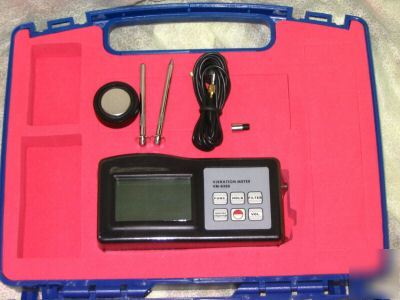

THIS BRAND NEW 6360 PORTABLE DIGITAL VIBRATION METER IS SPECIALLY DESIGNED FOR EASY ON SITE OVERALL VIBRATION LEVEL MEASUREMENT FOR ROTATING AND RECIPROCATING MACHINE AND PARTS FOR QUALITY CONTROL AND PREVENTATIVE MAINTENANCE IN PLANTS, MACHINE SHOP, AUTO SHOP AND OTHER INDUSTRIAL FIELDS. IT TESTS THE ACCELERATION, VELOCITY AND DISPLACEMENT TO DETECT OUT-OF-BALANCE, MISALIGNMENT AND OTHER MECHANICAL FAULT TO PERFORM FAILURE ANALYSIS IN ACCORDANCE WITH ISO 2954 STANDARD.
* PIEZOELECTRIC ACCELEROMETER TRANSDUCER FOR ACCURATE & REPEATABLE MEASUREMENT
* VELOCITY (10Hz-1KHz: 0.01-40 CM/S TRUE RMS 0.004-16INCH/S
* ACCELERATION (10Hz-1KHz; 10Hz-10KHz): 0.1-400M/S2 0.3-1312FT/S2
* DISPLACEMENT (10Hz-1KHz): 0.001-4.0MM 0.04-160MIL
* POWER SUPPLY: 4X1.5V AAA (UM-3) BATTERY
* OUTPUT: AC 2.0v PEAK FULL VALUE (LOAD RESISTANCE 10K)
* AC OUTPUT SOCKET FOR HEADPHONES (OPTIONAL AS STETHOSCOPE) AND RECORDING
* OPERATING CONDITIONS:0-50C 32-122 F (TEMPERATURE)
* DIMENSION: 124X62X30MM/4.9X2.4X1.2IN.
* WEIGHT: 120G/0.27LB. (WITHOUT BATTERY)
SOFTWARE CD For display, export and print all the data
want software for measurement data collection, edit, report and print, click
