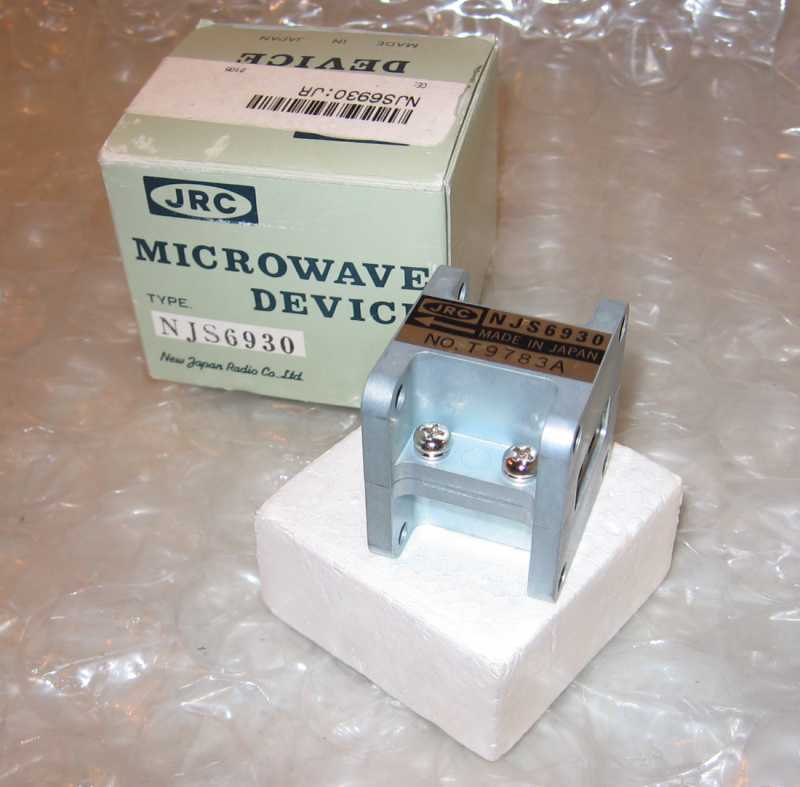

Njrc njr NJS6930 x-band diode limiter microwave radar
New Japan Radio Service Co. X-band diode limiter, part number NJS6930. Unused old stock, guaranteed not DOA.
NJS6930 is designed for the high power limiter of radar system.
It features s small size operable at any frequency between 9.30GHz and 9.50GHz.
Ambient temperature -30 +90 C
RF pulse width(Fig.2) - - s
V.S.W.R.(Note 1) - 1.5 -
Insertion loss(Note 1,3) - 1.5 dB
Flat leakage power(Note 2,3) - 150 mW
Spike leakage power(Note 2,3) - 600 mW
Recovery time(Note 2,3) - 0.5 s
See the spec sheet at http://www.njr.co.jp/pdf/me/me00021.pdf
