> Fuji E11 vsd inverter - FVR0.4E11S-4

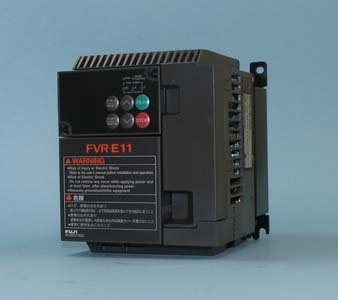

Fuji E11 vsd inverter - FVR0.4E11S-4
Control System Line Sinewave Modulation PWM - VF Constant Torque or VF Reduced Torque
Output Frequency Range 0.5 to 360Hz
Frequency Resolution Digital 0.1Hz Analogue Setting Max. Frequency Divided by 1000
Starting Torque More than 100% (When Torque Boost has been set)
DC Injection Braking Programmable Power, Time and Frequency Settings
Speed Reference Digital, 0-10V (10K Ohm impedance), 4-20mA (250 Ohm impedance)
Multi-stage Speed 16 Programmable Pre-sets
Output Voltage Auto Voltage Regulator (AVR)
Accel/Decel 0.1-3000s linear or S-Curve - 2 Selectable
Input Terminals 5 Progammable from 14 Selections
Output Terminals 2 Programmable from 5 Selections. Open Collector 27Vdc 50mA
Alarm Relay Change Over Contact
Meter Output Voltage or Frequency Output of Speed or Load indication only
Protection 15 Function inc. Earth Fault
Trip History Last 3 trips, total trip log
International Standards UL, C-UL (CSA), CE and C-Tick - Complies with EMC & LV Directives
