24 spindle natco #G316 multiple spindle drill, m #G316

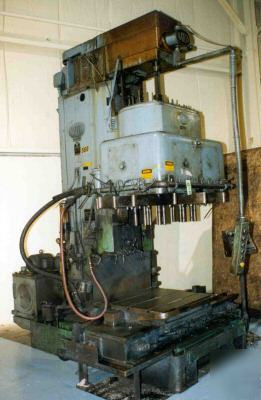

24 SPINDLE NATCO #G316 MULTIPLE SPINDLE DRILL
SERIAL .............................. G316-175
MODEL ............................... G316
YEAR NEW ............................ 1976
NUMBER OF SPINDLE ................... 24
PINDLE SPEEDS ....................... (36) 140 TO 2376 RPM
DIAMETER OF UPPERS .................. 1-1/2
OUTSIDE DIMENSION OF HEAD ........... 46 X 34
INSIDE DIMENSION OF HEAD ............ 34 X 20
TRAVEL OF HEAD ...................... 18
AREA OF BASE ........................ 36 X 36
AREA OF TABLE ....................... 32 X 30
LONGITUDINAL TRAVEL OF TABLE ........ 36
MAXIMUM DISTANCE SPINDLES TO BASE ... 60
2 SPEED NECK ........................ YES
3 SPEED HEAD ........................ YES
AUTO DRILL CYCLE .................... RAPID FEED/RETURN
STEP DRILLING ....................... YES
SPINDLE DRIVE MOTOR ................. 15 HORSEPOWER
