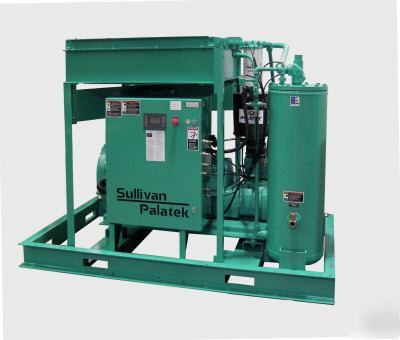

New sullivan palatek 60UD air compressor 60HP
* Model 60UD Rotary Screw Air Compressor
* Electric Motor: 230/460 volt (40-60 H.P.), Nema T-frame, C-face, open drip proof squirrel cage induction type. EXTENDED FIVE YEAR PLATINUM WARRANTY
* Motor Starter: 460 volt (40-60 H.P.), full voltage magnetic starter with 110 volt controls, Nema-1 enclosure, ETL listed and three phase overload with external reset and phase protection. Control circuit breaker protection. Other voltages available. Cooling fan protected by overload relay.
* Separator Tank: ASME coded 200 PSIG tank, relief valve, minimum pressure/check valve, high efficiency replaceable oil separator element.
* Fluid Fill & Level Elbow: One piece fluid fill elbow and level sight glass. Vented cap for pressure release when filling.
* Protective Devices: Class 20 overload relay, high temperature and over pressure shutdown switches, and anti-restart pressure switch preventing starting while air compressor is pressurized. Anti-reversing control standard.
* Cooling System: Cooling system with own motor. Large side by side oil cooler/aftercooler. Updraft for maximum efficiency. Easy cleaning.
* Air Intake Filter: Oversized dry type with easily replaceable element.
* Inlet Valve: One piece housing for dependable performance and full modulation.
* Coupling & Drive: Compressor is flange mounted to motor C-face for positive alignment and direct driven by zero maintenance coupling which carries a EXTENDED FIVE YEAR PLATINUM WARRANTY AND THE ELEMENT HAS A ONE YEAR WARRANTY
* Controls: Full modulation, solenoid controlled for smooth lowest possible no load power. Automatic start/stop or constant speed. Timed dual control.
* Instrumentation: Microprocessor Controller
* High Pressure Maint. Kits - For H60 and HH60
* Auto/Dual Control: Compressor control that allows the unit to be operated in continuous run mode or with an automatic timed shut down. Auto control allows multiple machines to be operated in a lead-lag condition.
* Oil Filter: Spin on type mounted direct to compressor unit for ease of maintenance and streamlined tubing.
* Air Cooled Aftercooler: Double pass air-cooled aftercooler with thermostatic control for maintaining the appropriate oil operating temperature and reducing the discharge air temperature to within 15 degrees of ambient.
FOR OTHER OPTIONS, PARTS, SERVICE OR RENTALS Please call us at (***)-824-9903 or email.
