New est usb willem eprom programmer bios PCB5.0E (smd)

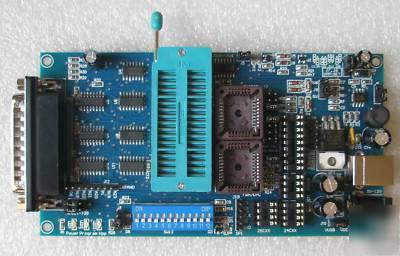

NEWEST USB Willem EPROM Programmer PIC BIOS PCB5.0E
New design, it combines the merits of dual powered (USB/AC) willem version & Enhanced willem version.
High performance among existing Parellel/LPT version of willem programmers (PCB3B/3.5x-5.X)
Selectable hardware versions & high quality PCB
Dual power supply capability: can be USB powered or AC powered
Build-in FWH/LPC, PLCC32 adapters on the programmer board
New software supports over 100 more chipsWorks well & stable on EPROMS: 27C256, 27C512
Direct supports Intel810,815,845 motherboard N82802AB,SST49LF002/004 3.3v device
Direct supports common useful AT51/PIC MCU
Supports Win9X, Me, XP , NT and 2000 operating systems
1. USB Willem EPROM Programmer PCB5.0E
4. Programmer Software on CD Rom
M27C1001 , M27C2001 , M27C4001
27C080 (A19) , M27C801 , M87C257
2716(Vpp25V) , 2732 , (adapter DIP24)
2764 , 27128 , 27256 , 27512 , 27010,
(Adapter or Jumper) 28C16,XLS2816 (DIP24)
28F64 , 28F128 , 28F256 , 28F512 , 28F010 , 28F020
MX26C1000 , MX26C2000 , MX28F1000 , MX28F2000
Am28F256A , Am28F512A , Am28F010A , Am28F020A (New command erase/prog.)
i28F001BX , 28F004 , 28F008 , 28F016
29F64 , 29F128 ,29F256 , 29F512 , 29F010 , 29F020 , 29F040 , 29F080
29F001 , 29F002 , 29F004 , 29F008 , 29F016 , 29F032 , V29C51002T , 29LV040
<- Data 8bit ->(pin 6 ->ORG. [Schematic connect to GND])
93C06 , 93C46 , 93LC46 , 93C56 , 93C57, 93C66 , 93C76 , 93C86 (8bit) , AT59C11 , AT59C22 , AT59C13
CAT35C102 , CAT35C104 , CAT35C108 (pullup pin7)
<-Data 16bit-> (pin 6 ->NC [No Connect])
16C84 , 16F84 ,16F84A , 16F627/16F628
12C508/A , 12C509/A , 12CE518 , 12CE519 , 16C505
PIC16F72/73/74/76/77 , PIC16F737/747/767/777 , PIC16F87/88 , rfPIC12F675x , PIC16F785/PS200 , PIC16F716
PIC12C671 , PIC12C672 , PIC12CE673 , PIC12CE674
PIC16C61/71 , PIC16C62/64/65/73 , PIC16C62A/62B/62C/63/63A/64A/65A/65B/66/67
PIC16C72/72A/73A/74A/74B/76/77 , PIC16C620/620A/621/621A/622/622A
PIC16CE/623/624/625 , PIC16C710/711/712/716 , PIC16C773/774 , PIC16C745/765/923/924 , PIC16C925/926
PIC16C554/556/557/558 , PIC16C432/433 , PIC16C717/770/771/781/782
PIC12F629/675 , PIC16F630/676 , PIC12F635/683 , PIC16F636/684/688 , PIC16F72/73/74/76/77 ,
PIC16F737/747/767/777 , PIC16F87/88 , rfPIC12F675x , PIC16F785/PS200 , PIC16F716
PIC12C671 , PIC12C672 , PIC12CE673 , PIC12CE674 , PIC16C61/71 , PIC16C62/64/65/73 , PIC16C62A/62B/62C/63/63A/64A/65A/65B/66/67 , PIC16C72/72A/73A/74A/74B/76/77 ,
PIC16C620/620A/621/621A/622/622A , PIC16CE/623/624/625 , PIC16C710/711/712/716 , PIC16C773/774 , PIC16C745/765/923/924 , PIC16C925/926 , PIC16C554/556/557/558 , PIC16C432/433 ,
PIC12F508/509 , PIC10F200/202/204/206 , PIC16F505 , PIC16F54/57
PIC18F1220 , 18F2220 , 18F4220 , 18F1320 , 18F2320 , 18F4320
PIC18F6520 , 18F6620 , 18F6720 , 18F8520 , 18F8620 , 18F8720
PIC18F2331 , 18F2431 , 18F4331 , 18F4431
PIC18F6525 , 18F6621 , 18F8525 , 18F8621
PIC18F6585 , 18F6680 , 18F8585 , 18F8680
PIC18F2439 , 18F2539 , 18F4439 , 18F4539
PIC18F2510 , PIC18F2515 , PIC18F2520 , PIC18F2525 , PIC18F2550 , PIC18F2585
PIC18F2610 , PIC18F2620 , PIC18F2680
PIC18F4410, PIC18F4420 , PIC18F4455
PIC18F4510 , PIC18F4515 , PIC18F4520 , PIC18F4525 , PIC18F4550 , PIC18F4585
PIC18F4610 , PIC18F4620 , PIC18F4680
-Additional Find and edit value OSCCAL (PIC12F629/675 , PIC16F630/676)
-Additional Edit config at address 0x2008,0x2009 (PIC12F635/683 , PIC16F636/684/688 , PIC16F785)
PIC12F675 , PIC16F676 , PIC16F684 ,PIC16F767, PIC16F74
PIC16F872 , PIC16F876 , PIC16F877, PIC16F876A, PIC16F873A, PIC16F819
epromPIC12C509JW , PIC16C505JW , PIC16C711JW , PIC16CE625JW
PIC18F458 , PIC18F4320 , PIC18LF258 , PIC18F4539 , PIC18F4431
W29EE512 , W29EE011 , W29EE012 , W29C020(128) , W29C040
(disable prog. CPUIdle or CPUCool)
AT49F512 , AT49F010 , AT49F020 , AT49F040
SST39SF010 , SST3S9F020 ,SST39SF040
AT49F001 , AT49F002 , AT49F008A
Am29F512 , Am29F010 , Am29F020 , Am29F040 , HY29F080
AT89C51 , 52 , 55 , AT89LV51 , 52 , 55
AT89S8252 (8K+2K) , AT89S53 , AT89LS8252 , AT89LS53
AT89C1051 , AT89C2051 , AT89C4051 (20pin)
AT89C51RC (32KB) ,AT89C55WD(6.2V)
i8xC51 , i8xC52 , i8xC54 , i8xC58 (tWP = 100uS*25 Pulse)
(read , write , erase , verify , checkempty , Lockbits , Fusebits) [Flash memory/EEPROM]
90S2333 , 90S4433 , 90S4414 , 90S8515 , 90S4434 , 90S8535
Function Lockbitread AT90S2313 Errata Sheet.pdf
P8048AH , P8049AH,P8050AH, P8042AHVea = 12V
P8748 , P8749H , P8742HVea = 18V
D8748 , D8749 , D8742, D8741 , D8742Vea = 18V
Am29F400 , Am29F800 , 29F160 , 29F320 (read , write byte mode)
HY29F200 , HY29F400 , HY29F800 , AT49F2048A , AT49F4096A , AT49F8192A
i28F200 , i28F400 , i28F800 , i28F160 (TSOP48)
27C1024 (27C210) , 27C2048 (27C2002) , 27C4096 (27C4002),
by use Resister pull up Data Bus (0xFF) , A0 select low or high byte)
EPROM 16bit (DIP42) (4-32Mbit)
M27C400(DIP40) , 27C800 , 27C160 , 27C322
by use Resister pull up Data Bus (0xFF), A0 select low or high byte)
Adapter Firmware Hub/LPC(PLCC32) (PP mode) (3.3V)
82802AB , 82802AC , AT49LW040 , AT49LW080
SST49LF002A , SST49LF003A , SST49LF004A , SST49LF008A
W49V002A , W39V040A , PT49V004
MBM29LV002TA/BA , MBM29LV004 , MBM29LV008 , MBM29LV017 , MBM29LV080
MBM29F002ST/SB , MBM29LV016 , Am29LV004 , Am29LV002 , Am29LV008
MBM29F017A , MBM29F016A , MBM29F080 , 28F008SA , 29F004S5
Am29F080 , Am29F016B , Am29F016 , Am29F017B , Am29F065MU
