LM2904D, dual operational amplifier, amp, qty 20

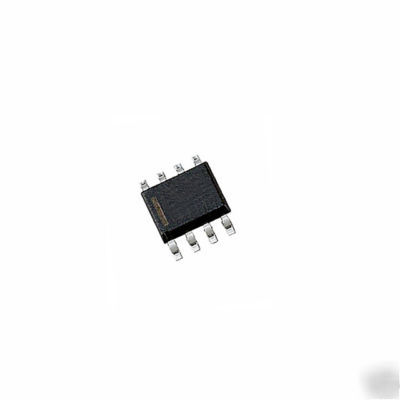

LM2904DR, Dual Operational Amplifier, 8 pin SOIC, Quantity 20, Texas Instruments.
This device consist of two independent, high-gain, frequency-compensated operational amplifiers designed to operate from a single supply over a wide range of voltages. Operation from split supplies also is possible if the difference between the two supplies is 3 V to 26 V and V
CC is at least 1.5 V more positive than the input common-mode voltage. The low supply-current drain is independent of the magnitude of the supply voltage.
Applications include transducer amplifiers, dc amplification blocks, and all the conventional operational amplifier circuits that now can be implemented more easily in single-supply-voltage systems. For example, these devices can be operated directly from the standard 5-V supply used in digital systems and easily provide the required interface electronics without additional 5-V supplies.
* Low Supply-Current Drain, Independent of Supply Voltage . . . 0.7 mA Typ
* Common-Mode Input Voltage Range Includes Ground, Allowing Direct Sensing Near Ground
* Low Input Bias and Offset Parameters
* Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage . . . 32 V
* Open-Loop Differential Voltage Amplification . . . 100 V/mV Typ
* Conventional Operational Amplifier Circuits
