P&s L5-30 locking connector plug twist lock 30A 125V

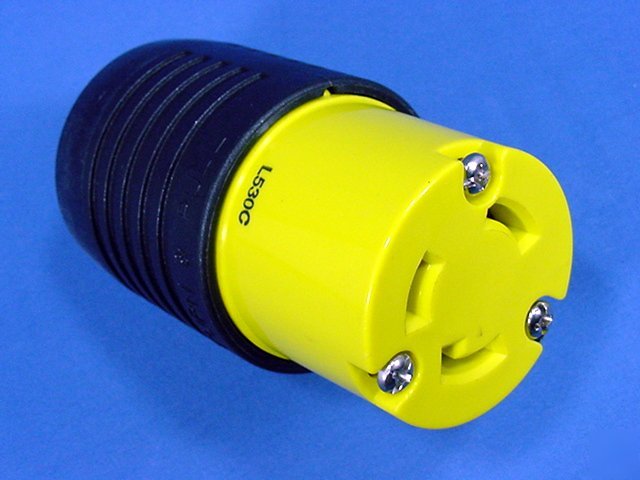

P&S L5-30 Locking Connector Plug Twist Lock 30A 125V
Pass & Seymour L530-C Turnlok locking connector. NEMA L5-30R, 2-pole, 3-wire, grounding, rated 30A 125V. Accommodates 0.385"-1.150" cord diameter. Each is individually packaged; packaging may differ from photo. Features include:
* Quick-thread assembly screws and cord-grip screws come backed-out, ready-to-wire
* Chemical-and impact-resistant nylon housing features horizontal, easy-grip ribs on back body
* Clear thermoplastic terminal chamber for clear view of terminals and wire connections
* Exclusive, rugged integral cord grip accepts a wide range of cord widths, no external parts to snag or break off
* NEMA number stamped on body is always visible for fast I.D. without disconnecting
* Industrial-strength, brass alloy connector contacts resist heat rise, provide excellent conductivity
* Recessed cord-grip screw reduces screwdriver slippage, improves safety
* Compatible with wire mesh strain reliefs
* Exclusive external neoprene dust cover seals cable entry
Click here to see matching L5-30 plugs, connectors & receptacles. This is New Old Stock and is returnable for any reason. (SKU #PASL530-C-EA-YELLOW; 0.40 Pounds)
