> Cep temp power distribution spider gfi box and cord

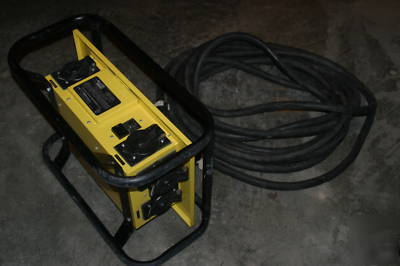

Cep temp power distribution spider gfi box and cord
* GFCI's provide both open neutral and reverse phasing protection for 120V outlets.
* "Power On" indicator lights on GFCI's
* 220V High Voltage Shut-Off with indicator light
INLET: CS6375 50 AMP 250V INLET.
1 - CS6369 50 AMP 125/250 Volt receptacle
1 - L6-30R 30 Amp 250 Volt non-GFCI receptacle
* 6 - L5-20R 20 Amp 125 Volt Straight Blade, GFCI individually protected receptacles
Input current: 50 amp 1 phase 125/250 volt A.C. 3 pole 4 wire.
Trip Level: 4-6 milliamps.
Trip Time: Less than .025 seconds nominal.
Finish: 3 mils U.L. listed polyester powder coat.
Dimensions: W=14.5" L=21" H=11".
All Outlets and GFI breakers Test Correctly. Unit Is in great condition, used for 2 jobs And now I do not need.
Complete with 50' 6/3 SOW rubber 50 Amp Cord. Rubber Cord has CS6364 Femal 50 Amp Connector And CS6365 50 Amp Male Connector.
This unit is almost new condition.Used for one project.
