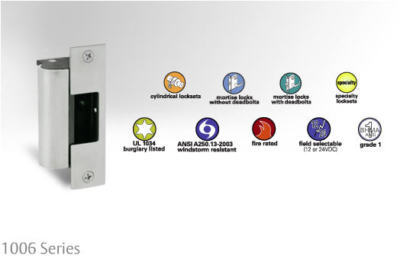

hes 1006 12/24 electric strike
The strongest, most versatile electric strike available
The 1006 series is the strongest and most versatile electric strike available. It meets or exceeds every standard developed for electric strikes. With 27 faceplate options, the 1006 can accommodate virtually every type of lockset on the market. Recently updated, the 1006 features a sleek new keeper and 100% stainless steel case. Tested to exceed 3,000 lbs. of static strength, 350 ft. lbs. of dynamic strength and factory tested to exceed 1,000,000 cycles of operation, the 1006 is in a class of its own.
* UL 10C fire-rated, 3 hour single door (fail secure only)
* UL 10C fire-rated, 1-1/2 hour double door (fail secure only)
* ANSI A250.13-2003 windstorm listed
* Florida Building Code approved
* Patents #6021038 & 6595564
* .25 Amps @ 24VDC continuous duty
* Static strength 3070 lbs. (fail secure)
* Dynamic strength 350 ft-lbs. (fail secure)
* Endurance 1,000,000 cycles
* Dual voltage 12 or 24VDC continuous duty
* Accommodates up to 1" deadbolt
