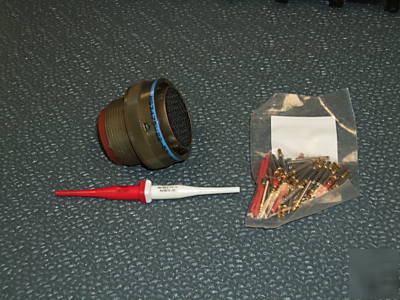

MS3475W22-55SY (1PCS)
OVERALL LENGTH - 1.420 INCHES MAXIMUM
OVERALL DIAMETER - 1.656 INCHES MAXIMUM
NOMINAL THREAD SIZE - 1.312 INCHES
NOMINAL THREAD LENGTH - 0.290 INCHES
SHELL MATERIAL - ALUMINUM ALLOY 6061
SHELL MATERIAL DOCUMENT AND CLASSIFICATION - QQ-A-591,A380 FED SPEC SINGLE MATERIAL RESPONSE OR QQ-A-367,T6 FED SPEC SINGLE MATERIAL RESPONSE
INSERT POSITION IN DEG - 134.0
CONTACT POSITION ARRANGEMENT STYLE - CJAB 22-55 SINGLE MATING END
INCLUDED CONTACT QUANTITY - 55 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS - 600.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION - MIL-G-45204,TY 1,GRADE C,CL 1 MIL SPEC 1ST TREATMENT RESPONSE AND QQ-N-290,GRADE E FED SPEC 2ND TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING
ENVIRONMENTAL PROTECTION - MOISTURE PROOF AND SALT WATER RESISTANT AND VIBRATION PROOF
TEST DATA DOCUMENT - 81349-MIL-C-26482 SPECIFICATION
SPECIFICATION/STANDARD DATA - 96906-MS3475 GOVERNMENT STANDARD
III PRECIOUS MATERIAL AND WEIGHT - 0.055 GOLD GRAINS, TROY
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MIL-C-26482
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MS3475W22-55SY
