10GA gauge 60" dia. niagara 31RC circle shear
10Ga Gauge 60" Dia. Niagara 31RC CIRCLE SHEAR

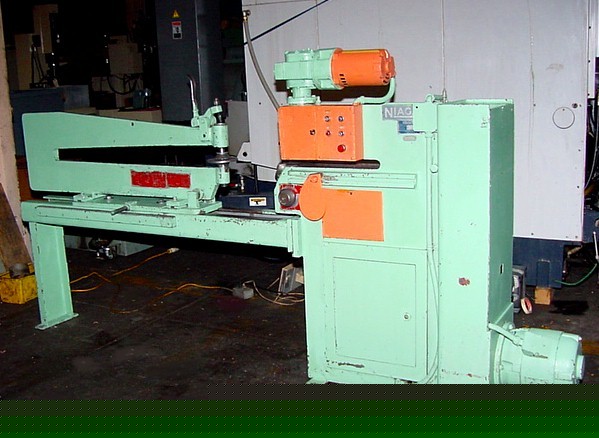

NIAGARA MODEL 31R-C CIRCLE SHEAR
MAXIMUM CAPACITY (MILD STEEL) ..................... 10 GAGE
CIRCLE DIAMETER FROM SQUARE BLANKS (MIN-MAX) ...... 6-60"
CIRCLE DIAMETER FROM OCTAGONAL BLANKS (MIN-MAX) ... 6-78"
SLITTING GAGE RANGE ........................... 7/8" - 17-1/4"
THROAT, CUTTERS TO FRAME .................. 18-1/2"
THROAT OF CIRCLE ARM .......................... 43"
DIAMETER OF CUTTERS ............................... 3"
CIRCUMFERENTIAL SPEED OF CUTTERS ............... 100 FPM
MAIN MOTOR .............................. 3 HP 3/60/230-460V (1800 RPM)
FLOOR SPACE: 136" L-R x 20-1/2" F-B
OVERALL DIMENSIONS: 9'10"L x 1'8"W x 4'8"H
