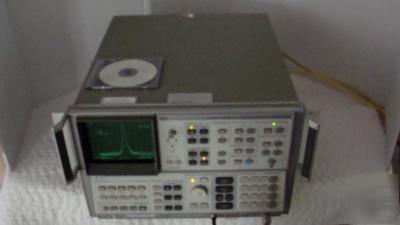

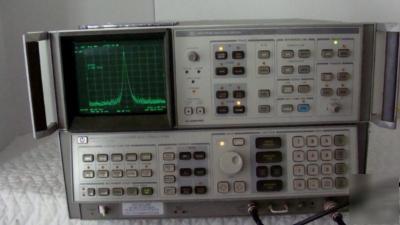

Hp - agilent 8566B 22 ghz spectrum analyzer w/extras
In these bad economic times, get more bang , for your money with tested, working and NIST TRACEABLE Calibrated test equipment from AAA Equipment Resources INC.
GET ONE OF HP/AGILENT'S BEST SPECTRUM ANALYZER TODAY.

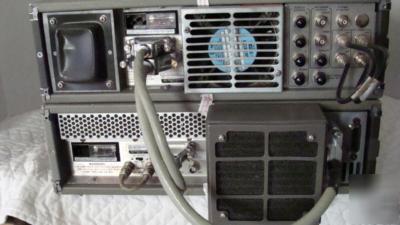

THIS IS THE COMPLETE UNIT. PLUG IN THE CABLES, PLUG THE IF AND DISPLAY IN AND OFF YOU GO!
You will get the NIST TRACEABLE Calibration Certificate as well.

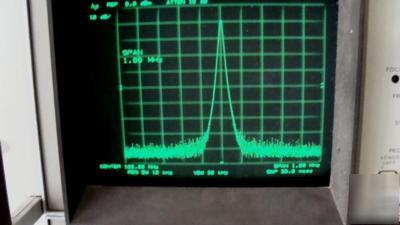

This is the industry standard, highest performance spectrum analyzer that HP/Agilent made. The frequency range is 100 Hz to 22 GHz and the capability of going up to 325 GHz with external mixers(not included). The excellent frequency stability allows measurements with a 10 Hz resolution bandwidth. Amplitude range is -134 to +30 dBm. The 8566B also has internal storage of user-defined routines to speed your test procedures. Plotters, printers, signal generators and power meters can be controlled by the 8566B with used-defined softkeys. The 8566B is fully HP-IB progammable and has direct plot capability.
FEATURES: *** 100 Hz to 22 GHz extendible frequency range with internal mixer; up to 325 GHz using external mixers *** 10 Hz resolution bandwidth and excellent frequency stability allow difficult measurements such as line-related sideband characterization at 22 GHz *** -134 to +30 amplitude range (dbm) *** Residual FM: <0.2 Hz, frequency span <5 kHz; <5 Hz, frequency span <100 kHz; <200 Hz, frequency span <5 MHz *** 16 K bytes of RAM for custom user defined measurement routines.
I WILL GIVE 14 DAY CHECK OUT TIME FOR YOU TO SEE THAT THE SYSTEM WORKS WITH IN HP - AGILENT SPECS. AND IS NIST TRACEABLE CALIBRATED! THE 2 UNITS ARE SEALS WITH TAGS.
Email me if you have any questions at ****@aol.com
