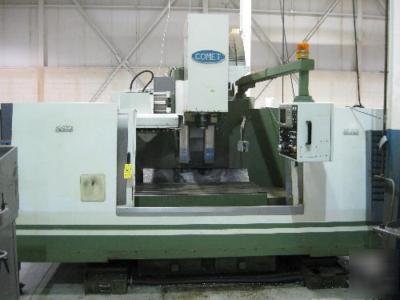

Mighty comet vmc-1500P cnc vertical machining center
TABLE SIZE.............................................. 63" X 30"
MAX TALBE LOAD.......................................... 3,000 LBS
TRAVELS (X)............................................. 58"
(Y)............................................. 28.5"
(Z)............................................. 24.5"
DISTANCE SPINDLE TO TABLE............................... 6.5" - 31"
SPINDLE TAPER........................................... 50
SPINDLE SPEED........................................... 6,000 RPM
SPINDLE MOTOR........................................... 20 HP AC
CUTTING FEEDRATE........................................ 393 IPM
RAPID TRAVERSE.......................................... 590 IPM
TOOL CHANGER............................................ 20 ATC
WEIGHT.................................................. 25,000 LBS
POWER ON HOURS.......................................... 7647
AUTO OPERATION......................................... 6986
MITSUBISHI MELDAS 500 CNC CONTROL
