Jdsu acterna dsam-6000B digital catv meter dsam 6000

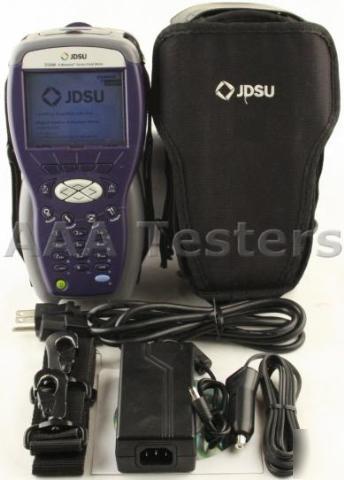

* JDSU DSAM-6000B w/ Options
JDSU Acterna DSAM-6000B Digital Service Activation Meter
JDSU ACTERNA DSAM Digital Service Activation Meter DSAM-6000B : Handheld Triple Play Field Meter :
The Acterna DSAM is a high-speed data installer meter that increases the number of cable modem installs per day. Using exclusive digital signal processing and integrated DOCSIS/EuroDOCSIS chipset technology, the meter communicates with the network CMTS to verify suitable conditions for cable modem installation from the subscriber's location. The DSAM is also equipped with signal level meter capabilities, including spectrum scanning for ingress assessment and mini-scan analysis of up to twelve analog and/or digital channels. The meter's AutoTest capability makes installations easier and more reliable than ever before.
The DSAM Wavetek Series Field Meter family provides a combination of DOCSIS/EuroDOCSIS cable modem installation meters for the on-site installation and service of high-speed data and video services.
Using exclusive digital signal processing and integrated DOCSIS/EuroDOCSIS chipset technology, the meter communicates with the network CMTS to verify suitable conditions for cable modem installation from the subscriber s location. The DSAM is also equipped with signal level meter capabilities, including spectrum scanning for ingress assessment and mini-scan analysis of up to twelve analog and/or digital channels. The meter s AutoTest capability makes installations easier and more reliable than ever before.
JDS Uniphase Corporation has incorporated exclusive DSP, DOCSIS, and analog technology to enhance your DSAM s usability and provide significant flexibility as additional features become available. Upgrading the meter can be as simple as downloading a file from the Internet and installing it onto the device using optional FDM utility software.
* All-in-one meter includes DOCSIS/EuroDOCSIS service testing and Signal Level Meter (SLM) features.
* NEW - Synch without Reboot
* NEW - Increased throughput on DOCSIS 1.1 hardware - up to 15MB downstream
* Autotest capability with administration security.
* Environmental resilience and robustness.
* Extensive help system directly linked to meter capabilities.
* Multiple language support.
* Digital carrier performance with Quick QAM summary of MER/EVM and pre/post FEC BER.
* Pre-configured automated tests for digital, analog, and DOCSIS channels.
* Increase field efficiency with an optional browser interface, over the DOCSIS RF link to your workforce management system using the IAS-100 Instrument Application Server software.
* NEW-QAM Ingress (DSAM-2600/3600/6000B - 6MHz units only)
* NEW-Sweepless Sweep: Standard on the DSAM-6000; Optional on DSAM-3500/3600
* NEW Enhanced Downstream Spectrum (Low Pass Filter, Resolution B/W (30KHz), Dwell time (1-25 ms), 4MHz - 1GHz
* NEW - Errored Seconds (ES) and Severely Errored Seconds (SES): DSAM-2500 and Up Only
* NEW - HUM for either 60Hz or 50Hz Power Grids
* DOCSIS, versions 1.0 and 1.1 based. Optional PacketCable VoIP test capability.
* 4 to 1000 MHz range; 8 MHz and 6 MHz models.
* Weather and shock-resistant enclosure.
* Weighs less than 3 lb (1.4 kg).
* Analog and digital signal level capabilities.
