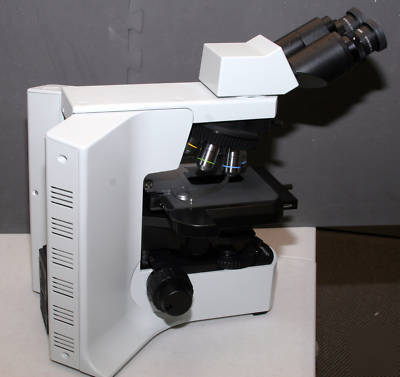

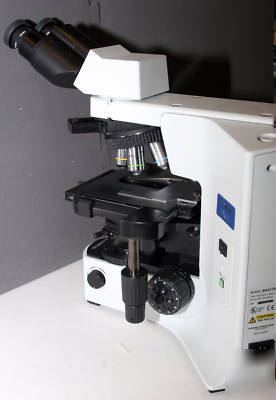

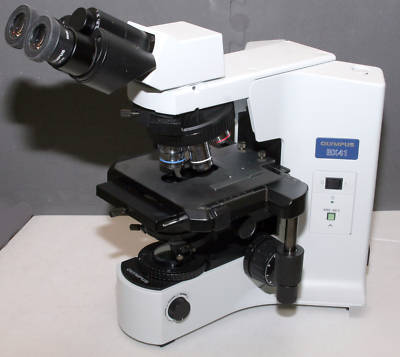

Olympus BX41 tf clinical / anatomic microscope mint
Olympus BX41 TF Clinical / Anatomic Microscope Mint Complete
If I have the box I would list it NEW because it has been never used.
This microscope is rare. It is listed for $12,500 from Olympus.

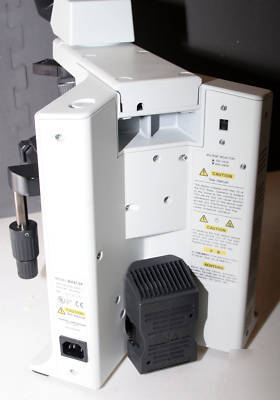

It is Complete filter eye pieces -rubber- condensers (Power Cord also included not pictured)
1. PLAN N 4x / 0.10 / -FN22
2. PLAN N 10x / 0.25 / -FN22
3. PLAN N 20x / 0.40 / -FN22
4. PLAN N 40x / 0.65 / -FN22
Vertical stage movement: 25mm stage stroke with coarse adjustment limit stop
Torque adjustment for coarse adjustment knobs
Stage mounting position variable
High-sensitivity fine focusing knob
Built-in Kohler illumination for transmitted light
6V30W halogen bulb (pre-centered)

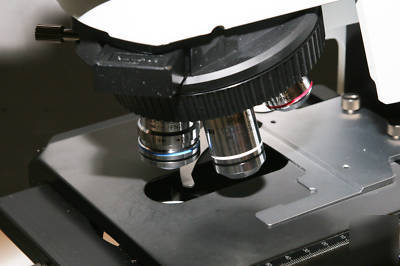

Interchangeable reversed sextuple/quintuple nosepiece

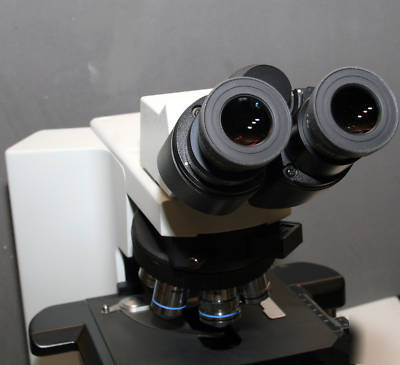

Widefield binocular, inclined 30
Widefield tilting binocular, inclined 5 - 35
Widefield trinocular, inclined 30
Widefield ergo binocular, inclined 0 -25
Super widefield trinocular, inclined 24
Ceramic-coated coaxial stage with left or right hand low drive control; with rotating mechanism and torque adjustment mechanism, optional rubber grips available
(non-stick grooved coaxial, plain, rotatable stages are also available)
Swing out Achromat (N.A. 0.9), 1.25x-100x
Achromatic Aplanat (N.A. 1.4), 10x-100x
Phase-contrast, darkfield (N.A. 1.1), 4x-100x
Darkfield dry (N.A. 0.8-0.92), 10x-400x
Darkfield oil (N.A. 1.20-1.40) 10x-100x
Ultra low (N.A. 0.16), 1.25x-4x
Ergonomic Design for Efficiency and Comfort
* Y-shaped frame brings all adjustable features toward the user for easy access to controls, while also providing superb stability
* Transmitted light frame with low-positioned coarse/fine focus (on both sides), coarse focus tension adjustment, K hler illumination, detachable nosepiece and light intensity dial in front
* New, precise motion, rackless design, stage is available for left and right hand use, tension adjustment for X, Y movement suits individual preferences

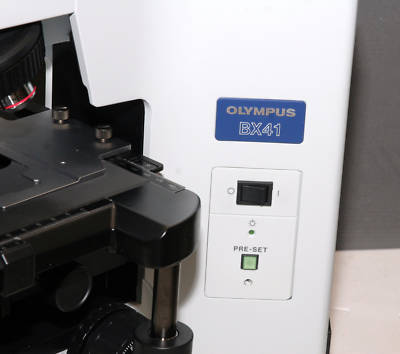

* A 6V/30W halogen illumination with photo-preset button for bright images and convenient photo documentation

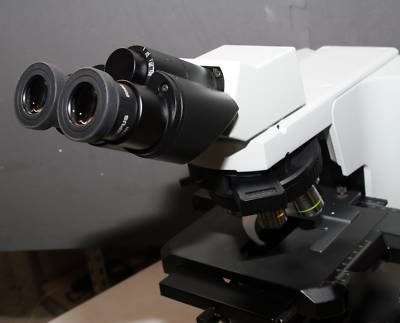

* Observation tubes - binocular and trinocular; ergonomic telescoping-tilting binocular tube (U-ETBI: inclination 0-25 degrees) with eyepiece extension up to 45mm; and a tilting binocular tube (U-TBI3: inclination 5-35 degrees)
Modular design allows for easy attachment of accessories without image compromise
* Tilting binocular heads - to enhance the ergonomics of a BX41 microscope in a multi user lab, utilize a tilting binocular head. The Tilting head provides an inclination of 5-35 degrees. For added flexibility, the Tilting Telescoping head provides 0-25 degree inclination with 0-45mm eyepiece extension, thus ensuring that the microscope accommodates the user, rather than forcing the user to accommodate the microscope.
* Risers can be inserted between the binocular head and the microscope body to raise the height of the eyepieces of the microscope head while maintaining the ergonomics of the stage and fine/course focus controls.
* Stage controls may be adjusted to customize the tension along the X, Y axes, resulting in less strain on the operator's wrists.
* Large fine focus knob that can be switched from either side of the microscope to accommodate left and right-handed users.

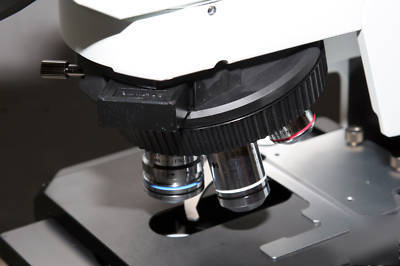

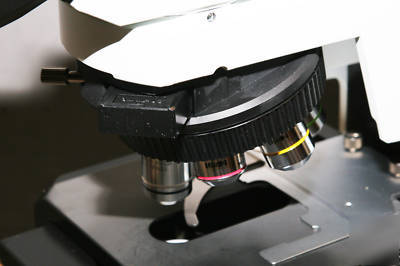

* Nosepieces - A variety of objective turrets are offered to accommodate 5, 6, and 7 objectives. The sextuple and septuple objective nosepiece have an analyzer slot for polarization contrast techniques. There is also a 4 and a special 6 place nosepiece turret available to ensure precise parcentration.
* Multiple condensers that will allow you to perform a wide range of contrast techniques such as Nomarski (DIC), polarization for Gout analysis,phase contrast, and darkfield.
* Photo tube allows the user to attach a digital camera while maintaining the ergonomics of the microscope.
