New manual or electric series cable tugger/wire puller
ANOTHER INNOVATIVE PRODUCT FROM PORTA*PULL
*Works with any standard 1/2" cordless or electric drill!
* Complete system-no extra parts to purchase
* Works with or without power
* Requires 2 person operation when using drill.
CONVERTS EASILY FOR UP, DOWN & SIDE PULLS.
Fiber Optic and Video Cable Too!

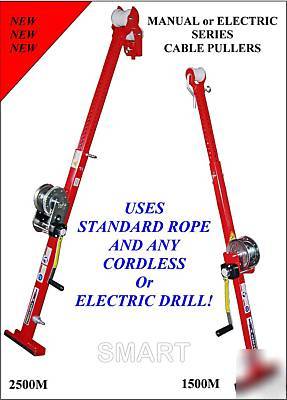

Designed for ease of use and fast setup, Porta-Pull's all new Manual or Electric series tuggers offer an affordable alternative to more expensive wire pulling systems. Both models use standard pulling rope and can be operated both manually or electrically with any 1/2" cordless or electric drill by simply removing the handle and installing the power adapter. Compact and lightweight, these innovative tuggers from Porta*Pull are ideal for electrical contractors with space limitations and smaller budgets. Makes quick work of branch circuits and power main pull-ins. Requires 2 person operation.

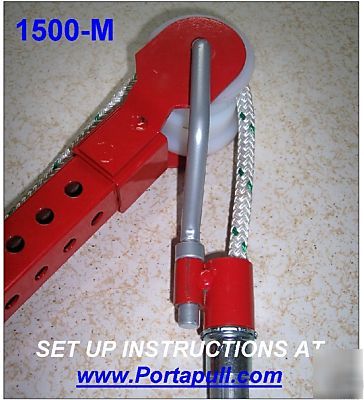

* Porta*Pull 1500M...........................$999.00
* Porta*Pull 2500M.........................$1399.00
* Heavy duty braking winch for positive rope control

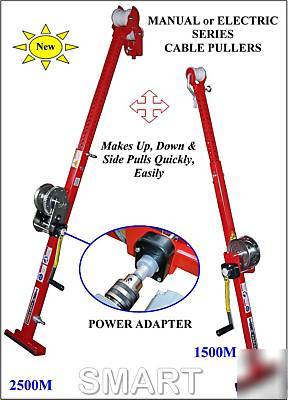

* Converts quickly from manual to power drive

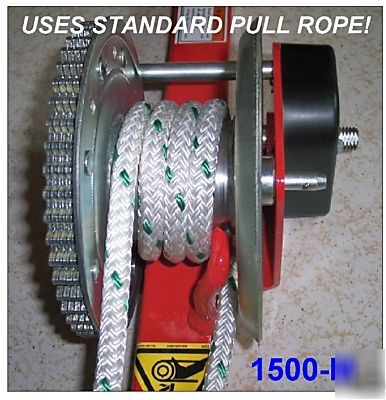

* Uses standard pulling rope
* Rugged unitized steel frame
* Compact, lightweight design carries easily to jobsite
* Works with any 1/2" cordless or electric drill
* Dimensions: 12" wide x 7" high x 48" length
* Pulling capacity: 1500 pounds
* Pulling speed: 40 feet per minute w/ drill
* Conduit adapters: 1/2" thru 2" included
* Capability: 6 x 4/0 awg cable 250' thru 3 x 90's

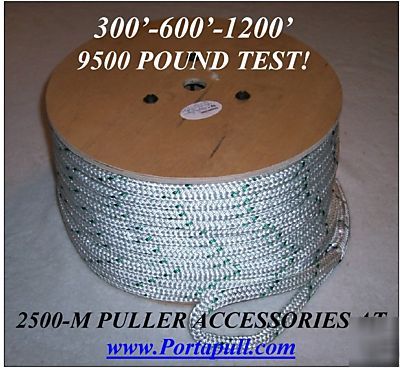

* Recommended rope size: 3/8" polyester braided or stranded
* Dimensions: 12" wide x 10" high x 48" length
* Pulling capacity: 2500 pounds
* Pulling speed: 25 feet per minute w/ drill
* Conduit adapters: Universal head fits all 1" or larger conduit
* Capability: 3 x 500 kcmil cable 500' thru 3 x 90's
* Recommended rope size: 1/2" polyester braided or stranded
