Fluke networks quickbert T1 model 635A
Fluke Networks QuickBERT T1 Model 635a

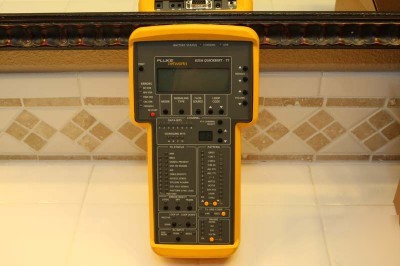

Up for sale is a Fluke 635 QuickBERT-T1
Includes fluke softcase and power supply. Unit works great. I no longer require this tool so i am selling it at a low cost to move it quickly.
Please see technical spec from fluke website below.
Framing: NONE, D4, ESF, SLC 96
Patterns: QRSS, 1 IN 7, 2 IN 8, 3 IN 24, ALL 0'S, ALL 1'S, 1:1, NET55, OCT55, DALY55, USER (default = 1:16)
Status/history: AMI (status only), B8ZS, Signal Present, Out of Frame, Blue Alarm (AIS), Ones Density, Excess Zeros, Yellow Alarm, DS1 Idle Signal (all Tx patterns are frame aligned), Pattern Sync Loss
DS0 drop: Selected DS0 channel to eight data bit LEDs and speaker
DS0 signaling types: Robbed Bit, CCIS, E-Bit
DS0 Signaling Bits: A, B, C, D
Compatibility: AT&T TA24/CB113
Transmitter Output Line codes:
Patterns: QRSS, 1 IN 7, 2 IN 8, 3 IN 24, ALL 0'S, ALL 1'S, 1:1, NET55, OCT55, DALY55, USER, THRU
Tx clock source: Internal, derived from received data, or external
Loop codes: CSU, NIU4, NIU5, NETWRK (ESF), LINE (D4), LINE (ESF), PYLD (ESF), ARM (D4), ARM (ESF), HTU-R,HTU-C, HRE1, HRE2, NREM, NLOC, NDU1, NDU2, CREM, CLOC, CDU1, CDU2
Rx T1 Receiver Term/Mon/Bridge: Bantam jack
Tx T1 Transmitter: Bantam jack
Auxiliary power: DC power jack
Display: 4 x 20 liquid crystal display (LCD)
Clock slips: Positive number means reference clock faster; negative number means reference clock slower
Errors: BIT ERR, BPV ERR, FRM ERR, CRC ERR, FREQDEV
Signal: DS1 Freq, DS1 Level, DS0 Freq, DS0 Level
DS1 Freq accuracy: 5 ppm, 32 to 104 F (0 to 40 C)
DS1 Freq range: 1544000 10,000 Hz
DS1 Level range: 6 dBDSX to -40 dBDSX
Battery Pack: Rechargeable, nickel metal hydride (NiMH); 3.5 amp-hours
Battery life: Approximately six hours of continuous operation
Low battery: Red LED illuminates, indicating recharge is needed
Auxiliary power: 9 - 12 VDC, 1000 mA
Operating temperature: 32 to 122 F (0 to 50 C)
Storage temperature: -4 to 140 F (-20 to 60 C)
Humidity: 95% maximum, non-condensing
Size: 1.75" H x 5" W x 9" L (4.4 cm x 12.7 cm x 22.8 cm)
The unit includes the power adapter/charger.
