Electronic interface relay module terminal blocks 24VAC
Electronic Interface Relay Module Terminal Blocks 24VAC

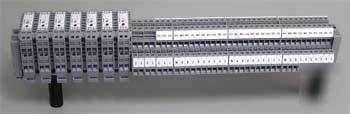

Terminal Blocks Mounted with Entrelec Relay Module-Series 10,000 Blocks on Rail
37 terminal blocks with 7 Entrelec 10 121.12 blocks
Specifications of Entrelec 10 121.12
* Rated voltage (+ 20%, - 15% on DC & 10% on AC): 24 V AC/DC
* Drop-out voltage: 2.4 V AC/DC
* Voltage switching range (min. / max.): 12 V / 250 V
* Current switching range(min. / max.): 10 mA / 5 A
* Load switching range (AC1 min. / max.): 0.6 VA / 1250 VA
* Number of on-load operations: 2 x 105
* Number of off-load operations: 2 x 107
* Operating speed: C=7 ms & O=4 ms
* Isolation, coil / contacts: 2000 V rms
* Isolation, contacts / contacts: 2000 V rms
* Storage: - 40 C to + 80 C
* Operating temperature: - 20 C to + 60 C
