> 1008X trinocular metallurgical microscope + 3M camera

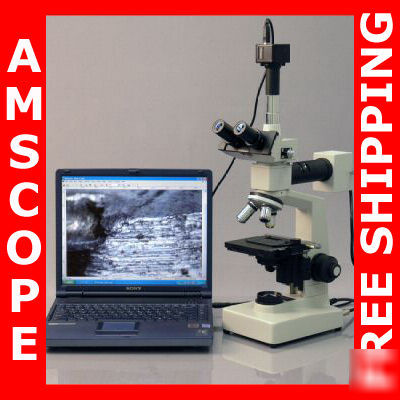

1008X trinocular metallurgical microscope + 3M camera
Unlike most other metallurgical microscopes, this model comes with reflected, transmitted and darkfield illuminations. Also included is a 3.0MP USB2.0 low lux color digital image system that is specially designed for low light microscopy including metallurgical, darkfield, fluorescent and phase contrast applications. It is especially useful for viewing transparent materials. This microscope offers eight magnification settings (40X, 64X, 100X, 160X, 400X, 630X, 640X, and 1008X). The 3.0 megapixel color USB camera captures microscope images and displays live video on your PC screen. On board hardware there are specially designed smart white balance, auto exposure, color adjustment, and digital image processing. It offers real-time live images and excellent real-color images, compatible with Windows 2000/XP/VISTA. It has a built-in reduction lens and gives the same field of view images on your PC screen as those seen through eyepieces. With the user-friendly software, you can edit microscope images in the same way as you use PhotoShop. You can record videos, capture still images or save them as BMP, TIFF, JPG, PICT, PTL and other formats. You can also measure length, angle, area, and etc. across the images. The microscope comes with a 30 inclined 360 rotatable trinocular head, coarse & fine focusing, mechanical stage, and halogen EPI-illumination and transmitted illumination system. This is an excellent metallurgical microscopy system for a variety of industrial and research applications including metallurgical labs, silicon wafer inspection, industrial Inspection, quality control, and foundries. It is brand new in original box.
Brand Name: AmScope Model No: ME300TY-2L-3M Retail Value: $4,500
* High quality trinocular professional upright metallurgical - metallographic microscope with reflected, transmitted and darkfield illumination system!
* Perfect for detail examination and micro-analysis of surface structures of metallic materials!
* Excellent for quality control in industrial and research applications including metallurgical labs, silicon wafer inspection, and foundries!
* Eight total magnification settings: 40X, 64X, 100X, 160X, 400X, 630X, 640X, and 1008X
* 3.0 megapixel high resolution, high quality, low lux, color USB2.0 PC digital image system
* Captures microscope images and displays full-screen live video on your PC screen
* Saves still images in BMP, TIFF, JPG, PICT, PTL or other formats
* Measures lengths, angles and areas across microscope images
* Edits microscope images on your computer in the same way as using PhotoShop
* Built-in reduction lens for the possible largest field of view
* User-friendly sophisticated software compatible with Windows 2000/XP/VISTA
* Detailed manual and user's instructions for easy operation
* Easy USB2.0 connection and installation
* 23mm universal/standard photo port
* Four superior quality PLAN DIN objectives, 4X, 10X, 40X (spring), and 63X (spring)
* Two pairs of widefield eyepieces, 10X and 16X
* Advanced EPI-illumination design offers excellent halogen illumination and optimal image clarity
* Epi-Illumination has independent filter holders, aperature/field diaphragms and diaphragm alignment controls
* Brightfield transmitted lighting system has 1.25 (N.A.) Abbe substage condenser, iris diaphragm and swing-out filter holder
* Darkfield condenser included
* Yellow, blue, green, and frosted filters included
* Coaxial coarse and fine focusing system
* Locking mechanism for controlling coarse focusing range and protecting objectives and specimens
* Large graduated mechanical stage with stain resistant finish
* Low position coaxial X-Y stage traveling controls
* Eyepieces: WF10X (18mm field of view), Widefield 16X (11mm)
* Objectives: PL 4X (0.1 NA), 10X (0.25 NA), 40X (spring, 0.65 NA), 63X (spring, 1.25NA)
* One Trinocular Metallurgical Microscope Body with EPI Illumination System
* Four Plan Objectives: 4X, 10X, 40X & 63X
* Four Filters: Yellow, Blue, Green and Frosted (built-in already)
* One 3.0 Megapixel USB Digital Camera
* One CD with Driver, Software and User's Instructions for the Camera
scope. We provide immediate support for any issues regarding your microscope. We are only a phone call away WE HAVE
