1.5HP 22GPM grundfos submersible deep well pump system
THESE ARE GREAT PUMPS / SYSTEMS. ( I have one installed in my home and it makes a world of difference. I also run my sprinkler/irrigation system with this system. ) SYSTEM MAINTAINS CONSTANT PRESSURE WITH A VARIABLE SPEED MOTOR THAT WILL OPERATE BETWEEN 3000 - 10700 RPM DEPENDING ON WATER DEMAND AND PRESSURE SETTING, USER FRIENDLY CU301 CONTROL WITH EASY TO USE PRESSURE SETTING FROM 40 - 100 PSI , WITH A SMALL 2 GAL. PRESSURE TANK AND SENSOR. THAT WILL OUT PREFORM ANY 4" 3450 RPM WELL PUMP.
These system are very easy installed new or as a DROP IN REPLACEMENT requiring no extra wiring than what is now running your old pump ( if using as a replacement ) assuming proper wire size/ga.
This is a Grundfos model 22SQE15-220 , 1.5 HP 22 Gallon per minute pump rate at 235' total dynamic head , You May get upto 28 Gallons per minute if installed at a lower head ( minimum 27' ).
3" Submersible Deep Well Constant Pressure System

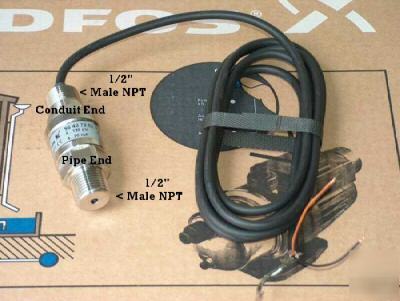

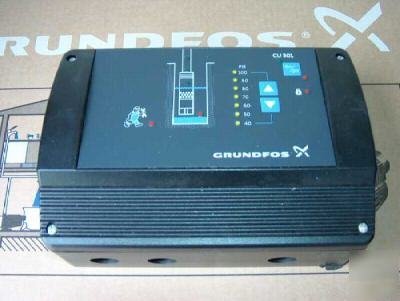

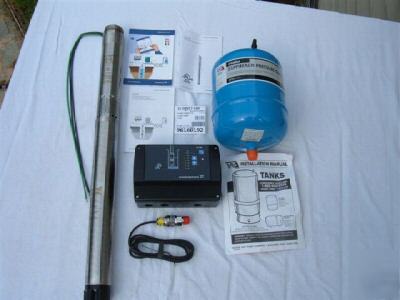

Complete New SmartFlo System* * System includes SQE model pump assy, CU301 constant pressure kit with pressure sensor, and a 2 gallon diaphragm pressure tank
Introducing the new SmartFlo SQE Constant Pressure System No water pressure fluctuations Soft start and soft stop eliminates annoying power surge and water hammer. Overload and over heating protection to ensure long life under adverse operating conditions. Built-in dry run protection to prevent damage to pump and motor. Utilizes a small, space saving, pressure tank. Easy to install. Designed for simple and quick installation to save you valuable time and labor cost. The system consists four main components. SQE Pump and Motor Assembly CU 301 Control Center Pressure Sensor 2-Gallon pressure tank No extra components or parts needed. Compact and lightweight design makes it easy to handle and transport. No separate start box or motor protection required. Green arrows indicate when water is flowing. A run-dry alarm shows when the pump has stopped because of low water conditions. You can easily boost pressure in the system for special jobs. Easily return the water pressure to normal when finished. Green and red lights clearly show you whether the system is on or off. For daily use, the pressure settings can be locked. If the system needs repair, a maintenance light provides a clear signal.
Please email me at ****@comporium.net with any questions & save
