4FT table top powder coat coating spray paint booth
4FT TABLE TOP POWDER COATING PAINT BOOTH
Built to order-usual build time is one week
This non-reclaim powder coating booth lets you recycle the air back into your building.
3 stage filter system meets nfpa and osha requirements
This spray booth is designed to meet your business needs and conforms to OSHA & NFPA spray booth regulations.
working area =44"w X 36"t X 24"d
overall size =48"w X 40"t X 48"d

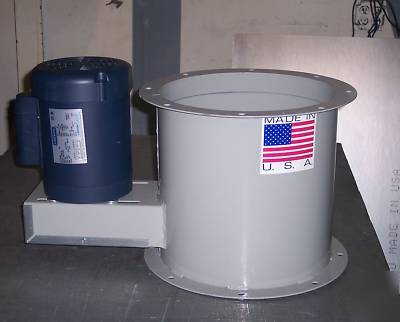

fan size = 12" with 3/4hp SINGLE PHASE TEFC MOTOR 115/220v POWDER COATED FINISH
All JC METAL FAB booth's are constructed from 18ga g90 galvanised steel. Panels are pre-punched on 6" centers and flanged. Interior is smooth for cleaning
(1) set 2 pocket bag filters size 20" x 20"
(1) punched angle ring to mount stack to fan
ADD A LIGHT " width must be increased to 4'6" "
You only have to mount fan and wire electric hookup.
