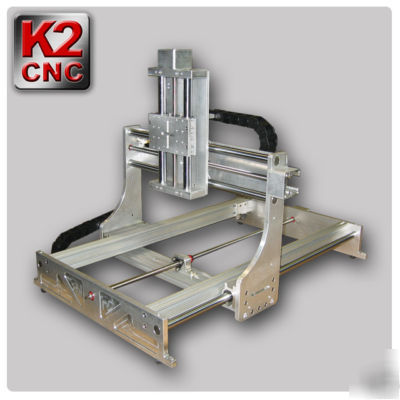

2009 K2 cnc router, cnc mill - milling machine 2514(5)
Travel of (Y)24" x (X)14" x (Z)5.5"
(Version 2009) (Shaft linear motion, compatible with nema 23 steppers and k2 servo motors)
The new KT-2514-09 has 20mm shafts, antibacklash nuts, wider 19 inch material capacity. Use the accurate machine to cut thin aluminum, plastics, and wood. The anti-backlash nut and the .100" pitch leadscrews provide very accurate resolutions and is great for fine inlay work. The pitch provides great mechanical advantage when cutting hard woods and have been tested to cut .375" deep, at 70IPM, with a .375" diameter bit when used with Gecko drives and 280 Oz/in motors. The frame is compatible with Nema 23 motors or K2 servo motors. With the right approach in your toolpaths, spindle, bits, accessories you can achieve results in milling that once required a $50,000 and more cnc machines. With the KT-2514-09 you now can do this in your own garage, business, or anywhere with 110V outlet.
+ New KT-2514-09 Frame (Shaft linear motion), + leadscrews .100" pitch and Kerk anti-backlash nut.
+ Mount choices: Porter Cable 892, Bosch Colt trimmer, Porter Cable 7310 only (we recommend the PC892).
+ Home limit switches. Use these to home the machine.
+ Settings for Mach 2 or Mach 3 with K2 machine profile CD/email and settings for gecko drives (Does NOT include full version of Mach 3 software with license)
+ K2 will not remove items from the machine to machine it a lower in price.
+ 3 Stepper Nema 23 motor (275 oz/in), .25 inch diameter coupler, wires and nema mounts.
+ Wires to estimated 24 inches
+ Mach 2 or Mach 3 software with K2 profile CD and settings for gecko drives $199
+ Spindle Router - Starts at $120
+ CAD software - Starts at $700
+ CAM software - Starts at $995
+ Computer - Starts at $400-$600
+ Table Top with T-slots (2 inches apart, uses 1/4-20 nuts and screws) - Retails $275
* Standard 5 inches of clearance and 5.5 inches of travel.
* Easy to assemble. 99% preassembled.
* Wider X axis clearance of 19 inches.
* In-line bearing arrangement on all axis for better longevity.
* 20mm shafts and bearing on al axis.
* All Axis uses Kert Lead screws and Kert Anti-backlash Nuts.
MDF, Maple, Balsa, Corian, Circuit Board, Hard Wood, Plastic, non ferrous metals.
Special misting, tools, proper feed rate, proper technique required if used to cut aluminum.
Standard Features of the this frame.
Recirculating steel bearings on all axis.
Direct drive coupler with anti-backlash.
Precision K2 Exclusive aluminum extrusions providing smooth motion.
KERK Brand Anti-Backlash Nuts on all axis
+ 100IPM Max Traverse. Default setting on Mach from K2.
+ 80IPM Max recommended Feed Rate
+ Used for homing, reference all home.
+ X=19" (side column clearance).
+ Y=30"or longer (table supports 30").
+ Z=5.75" No table to Z bottom.
+ Machine bottom X=22" Y=35" Z=24.5"
+ Machine top X=26" Y=35" Z=24"
+ with Motor top X=29" Y=38.5" Z=28"
+ 35K max RPM, great for 1/8 bits.
+ Precision .0005" collect sold by K2CNC.
+ 43.18mm (international type)
+ 3.5" diameter, 11" circumference.
+ K2 recommends for 1/4 and 1/2 bits.
Available routers sold by K2CNC
Recommended Features of the KT models at an additional charge.
Control Box 3 axis Stepper or servo.
Mach 3 control software with profile.
Available software for machine sold by K2CNC.
K2 CNC machines works with all standard G-codes.
CAD software (Computer Aided Design)
+ Art CAD with plugin RhinoArt
+ Use Visualmill for basic 2D and 3 D drawings.
CAM (Computer Aided Machining)
RhinoCam or VisualMill (Mecsoft)
Available software for machine sold by 3rd party.
KCDW Cabinet Software. Use Enroute for easy to use CAM.
Optional items for the KT models.
+ Fast and strong clamping method.
+ Use with a dusthood to avoid crashing into the clamps.
+ Increase precision a run-out of . 003" or .005" to a .0005" run-out. Ground collets.
DustHood. Please call and ask for Ron
Brass 1/8th inch collet holders.
+ Holds 1/8th bits with better accuracy compared to off the shelf adapters.
One year on parts based on an 8 hours per day, 7 days per week operation.
One year on labor at K2CNC location.
Phone - one basic set up - unlimited.
K2 site - basic mach 3 up to 4 hours.
Visualmill - basic understanding up to 1 hour.
All machines are crated in a wooden pallet and is enclosed with plywood, 2x2 and 2x4.
This ensures that your machine will ge there in one piece.
