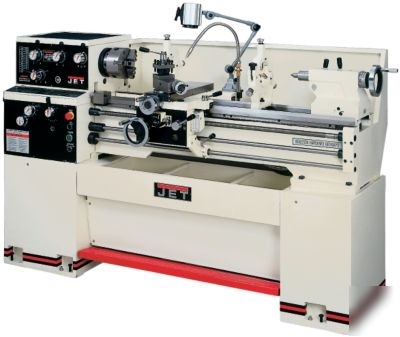

New jet gh-1340W-3-tak lathe w/taper attachment 321516
Spindle Mount D1-4 Number Of Spindle Speeds 12 Number Of Longitudinal And Cross Feed Rates 40 Range Of Longitudinal Feeds (IPR) .0012 - .0294 Range Of Cross Feeds (IPR) .0003 - .0103 Number Of Inch Threads 40 Range Of Inch Threads (TPI) 4 - 112 Number Of Metric Threads 22 Range Of Metric Threads 0.45 - 7.5 Taper In Tailstock Spindle MT-3 Prewired 230V Distance Between Centers 40 Swing Over Bed 7-1/2-in Swing Over Cross Slide 7-1/2-in Swing Through Gap 19-in Spindle Bore 1-1/2-in Spindle Taper W/ Sleeve MT-5 (MT-3) Max Tool Size 5/8-in x 5/8-in Compound Slide Travel 3-1/2-in Cross Slide Travel 6-3/8-in Carriage Travel 37-1/2-in Tailstock Spindle Travel 4-3/4-in Steady Rest Capacity 3-3/4-in Follow Rest Capacity 2-3/4-in Width Of Bed 10-1/2-in Motor 3 HP, 3Ph, 230/460V, Prewired 230V Range Of Spindle Speeds 40 - 1800 RPM
