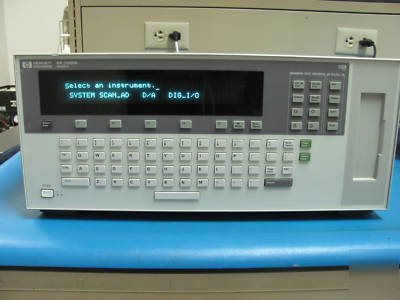

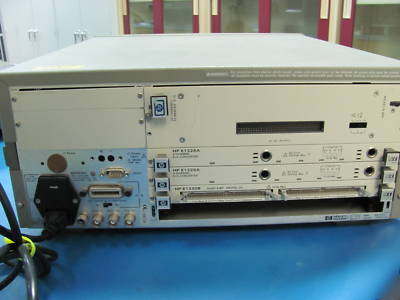

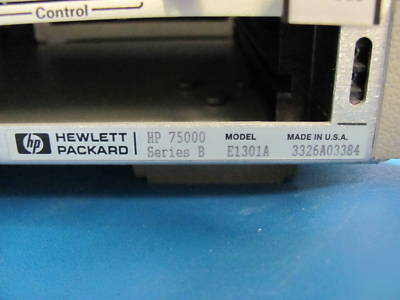

> Hp 75000 series b E1301A with modules
Hp 75000 series b E1301A with modules
* GPIB Interface and Resource Manager
* Slots: 9( 7 External, 2 Internal, 3 External A-Size)

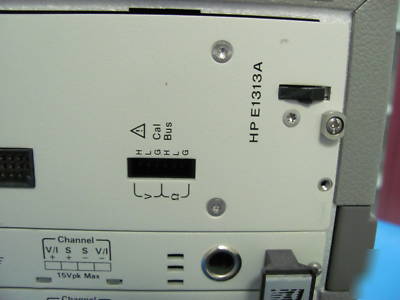

(1) HP E1313A 32-Channel Scanning A/D
* 3-Slot, B-size, register based
* Comprehensive signal conditioning on board
* Flexible scanning/auto sequencing
* High-speed data transfers into controller
* On-board data reduction and hi/low limit checking
* Signal digitizing to 1.5 kHz/channel sampling rate
Timing: Scan-to-scan timing and sample-to-sample timing can be set independently.
Scan triggers: Can be derived from a software command or a TTL level from other VXI modules, internal timer, or external hardware. Typical latency 17.5 s.
Synchronization: Multiple HP E1313A modules can be synchronized at the same rate using the TTL trigger output from one HP E1313A to trigger the others.
Alternate synchronization: Multiple HP E1313A modules can be synchronized at different integer-related rates using the scan timer/N mode and the TTL trigger output from one HP E1313A module to trigger the others.
Internal: 100 sec to 6.5536 sec
Trigger count: 1 to 65535 or infinite

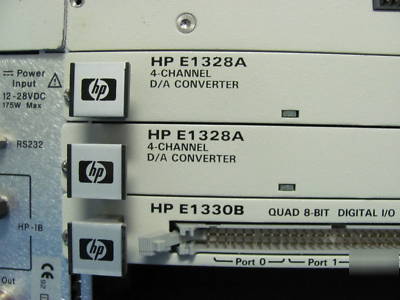

(2) HP E1328A 4-Channel D/A Converter
1-Slot, B-size, register based
Four isolated voltage or current DACs
10.92 V or 21.8 mA output
Remote voltage sensing with no-fault operation
Multiple channels connected in series/parallel
Amplitude: 10.92 Vdc max (cal on), 12 Vdc max. (cal off)
Resolution: 16 bits (cal off) 333mV programming interval(cal on) Monotonic to 2 mV
Amplitude accuracy (dc): (cal on, within 5 C of cal temperature and same load as at cal)
24-hour: (0.05% of output + 3.3 mV)
90-day: (0.15% of output + 29 mV)
Differential ripple and noise: <2 mV rms (20 Hz 250 kHz, 1 kW load)
Range: 21.8 mA (cal on) 24.0 mA (cal off)
Resolution: 667 nA programming interval (cal on), 16 bit resolution (cal off) Monotonic to 4 mA
Accuracy: (cal on, within 5 C of cal temperature and same load as at cal)
24-hour: (0.05% of output + 7 mA)
90-day: (0.15% of output + 59 mA)
Max open circuit voltage: 19 V
Differential ripple and noise: <4 mA rms (20 Hz - 250 kHz, into 100 W)
(1) HP 1330B Quad 8-Bit Digital I/O
Manual available at http:// /specs/Agilent-HP_E1301A.PDF
