Anzac four-way power divider 10-500 mhz model ds-312

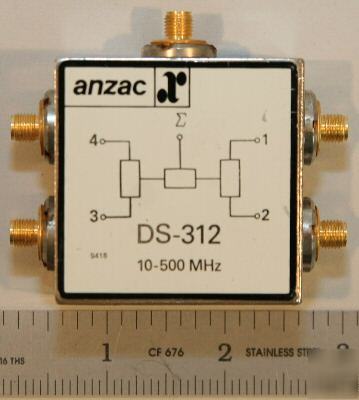

Anzac Four-Way Power Divider 10-500 MHz Model DS-312
* Frequency Range: 10 to 500 MHz
* Insertion Loss 10-400 MHz: 0.75 dB Max
* Insertion Loss 400-500 MHz: 0.85 dB Max
* Amplitude Balance: 0.2 dB Max
* VSWR 10-400 MHz: 1.5:1 Max
* VSWR 400-500 MHz: 1.35:1 Max
* Impedance: 50 Ohms Nominal
* Max Input Power: 1.0 Watt Max
