> Alto-shaam 500-3D drawer warmer 120V
Alto-shaam 500-3D drawer warmer 120V

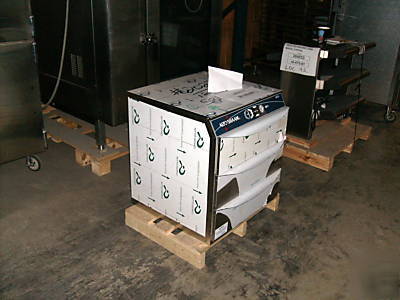

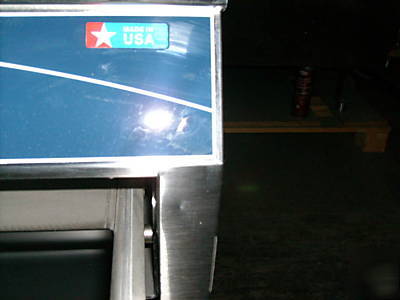

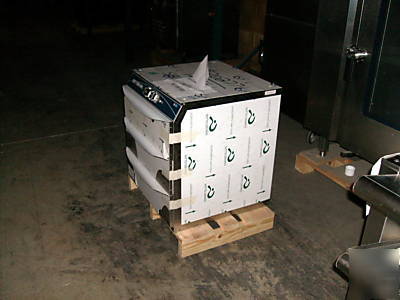

New Unit with slight damage - see pictures
HALO HEAT . . . a controlled, uniform heat source that gently
surrounds foods for better appearance, taste, and longer holding life.
Product moisture is retained without adding water.
Holding temperature gauge monitors inside air temperature.
Dual wattage control on the one and two drawer 120V cabinets
for more precise control of hard-to-hold products.
500 watts for breads, rolls, biscuits
1000 watts for meat, potatoes, and vegetables
Extra large pans for additional capacity, or can be adapted to
accept standard full-size pans.
Canted thermostat knob and indicator light.
Can be built into cabinets or counters. Built-in trim kits
Exterior of 20 gauge non-magnetic stainless steel with one set of removable 16 gauge stainless steel drawer
rail supports per drawer. Each cabinet is controlled by one (1) ON/OFF adjustable thermostat with a range of
to 200 F (16 to 93 C) and includes one (1) holding temperature gauge to monitor inside air temperature.
Each drawer includes one (1) 12" x 20" x 6" (305mm x 508mm x 152mm) stainless steel pan. The drawer
assembly is easily adapted to accept an oversized pan that is 15" x 20" x 5" (381mm x 508mm x 127mm) for
greater capacity. Drawer warmers are designed with four (4) stacking projections, located on the top of each
cabinet, to allow stacking in any combination without the need of additional hardware. Individual drawer
warmers, or stacked combinations, can be mounted on a 5" (127mm) Caster Stand Assembly for mobility, or
a 6" (152mm) Leg Stand Assembly for stationary placement.
MODEL 500-3D: three drawer warmer
