Nitek TR515X4 utp 4 port video modular card for RK400
Manufacturer: NITEK Model/Part #: TR515x4CONDITION

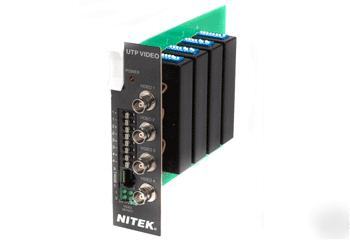

NITEK TR515x4 UTP 4 Port Video Modular Card for RK400
The TR515x4 is designed for use with the modular rack system. The system holds up to ten (10) Modular cards in any combination, using the RK400 card cage (not included). This modular plug-in feature allows the system to be custom configured for each application and provides easy expandability.
The TR515x4 is designed for operation over Category 2, 3, 4 or 5 twisted pair cable. The system works equally well over existing communication and computer network spare pairs or new cable installations. A highly balanced transmitter output design assures that the system will not interfere with other equipment on the network. Advanced receiver electronics provide complete immunity from ground loop, hum and noise to produce maximum video quality with minimum loss.
A dipswitch on the receiver unit provides incremental adjustment of gain and frequency compensation to allow the system to be fine-tuned for an existing cable. This unique feature provides adjustment for optimum performance over the entire operating range and also allows cable length to be estimated with a wide safety margin. The TR515x4 includes only the receiver card. See Ordering Information for transmitter units.
